Flange Cartridge Bearing Units

Ang Flange Cartridge Bearing Units ay mga unit ng matibay na cast iron housing na may piloted flange cartridge at mas malawak na inner ring bearing insert.
Flange Cartridge Bearing Units, UCFC Standard na tungkulin, Mas malawak na panloob na ring bearing, Setscrew locking, Cast gray iron housing Flange Cartridge Bearing Units
Ang mga ito ay mga yunit ng matibay na cast iron housing na may piloted flange cartridge at mas malawak na panloob na ring bearing insert.

Karaniwang pagpipinta sa berde (ang iba pang mga kulay ay magagamit para sa mga pagpipilian).

Ang karaniwang tungkulin (FC200) at medium duty (FCX) ay available para sa seryeng ito.

Ang mga takip ng dulo sa pamamagitan ng pinindot na bakal ay may kakayahang magprotekta laban sa panlabas na polusyon at alikabok.

Ang kakayahan sa self-aligning ng ball bearings ay maaaring makabawi sa bahagyang static na mis-alignemnt ng shaft. Ang mga pagsingit ng bearing ay naka-lock sa baras sa pamamagitan ng mga set screw, sira-sira na locking collars, adapter sleeves at concentric locking collars atbp.

Ang mga lubricant na pinupuno sa loob ng spherical ball bearing insert ay maaaring karaniwang grease, low/high temperature grease at food grade grease.

Makipag-ugnayan sa Amin

NAUNA：Kumuha ng Mga Unit ng Bearing SUSUNOD：3 Bolt Flange Mounted Bearing

Mga Detalye
Makipag-ugnayan sa Amin

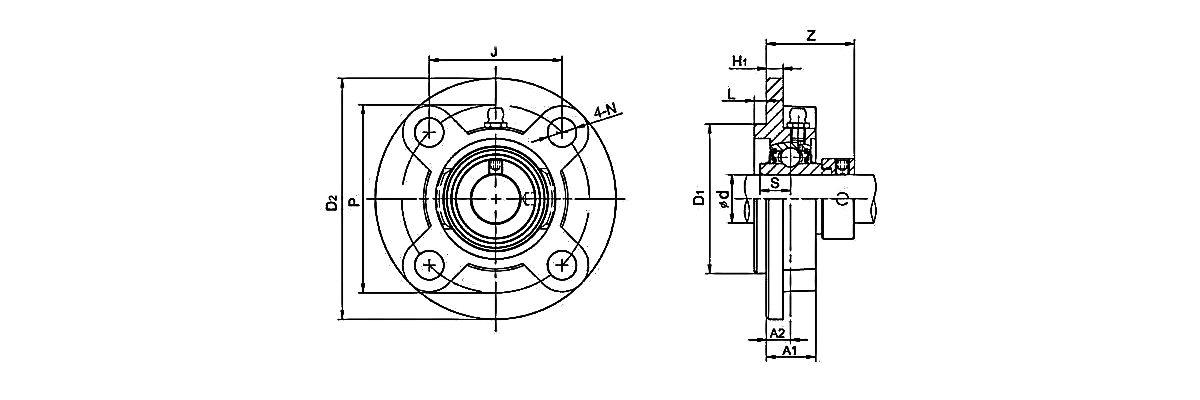

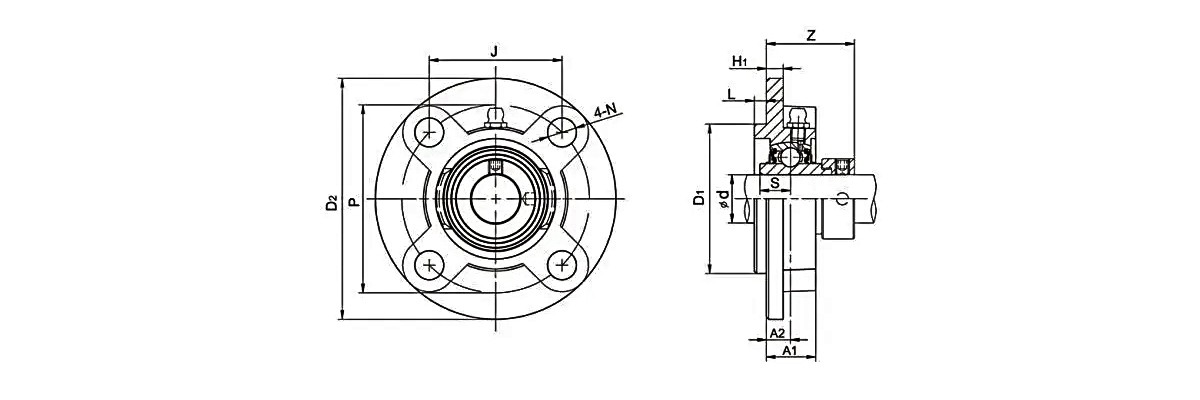

Unit No.	Shaft Dia		Mga Dimensyon(mm)												Laki ng Bolt (mm)	Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B	S	Z
	(sa)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	B	S	Z
UCWFC201		12	90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.64
UCWFC201-8	1/2		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.64
UCWFC202		15	90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.6
UCWFC202-9	9/16		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.6
UCWFC202-10	5/8		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.6
UCWFC203		17	90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.58
UCWFC203-11	11/16		90	70	49.5	10	10	4	5	19	55	27.4	11.5	25.9	M8	0.58
UCFC204		20	100	78	55.1	10	12	5	7	20.5	62	31	12.7	28.3	M10	0.75
UCFC204-12	3/4		100	78	55.1	10	12	5	7	20.5	62	31	12.7	28.3	M10	0.75
UCFC205		25	115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC205-14	7/8		115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC205-15	15/16		115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC205-16	1/1		115	90	63.6	10	12	6	7	21	70	34.1	14.3	29.8	M10	1
UCFC206		30	125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-17	1/16		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-18	1/8		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-19	3/16		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC206-20	1/4		125	100	70.7	10	12	8	8	23	80	38.1	15.9	32.2	M10	1.3
UCFC207		35	135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-20	1/4		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-21	5/16		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-22	3/8		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC207-23	7/16		135	110	77.8	11	14	8	9	26	90	42.9	17.5	36.4	M12	1.75
UCFC208		40	145	120	84.8	11	14	10	9	26	100	49.2	19	41.2	M12	2
UCFC208-24	1/2		145	120	84.8	11	14	10	9	26	100	49.2	19	41.2	M12	2
UCFC208-25	9/16		145	120	84.8	11	14	10	9	26	100	49.2	19	41.2	M12	2
UCFC209		45	160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC209-26	5/8		160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC209-27	11/16		160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC209-28	3/4		160	132	93.3	10	16	12	14	26	105	49.2	19	40.2	M14	2.5
UCFC210		50	165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC210-30	7/8		165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC210-31	1-15/16		165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC210-32	1/2		165	138	97.6	10	16	12	14	28	110	51.6	19	42.6	M14	2.95
UCFC211		55	185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC211-32	1/2		185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC211-34	1/8		185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC211-35	3/16		185	150	106.1	13	19	12	15	30	125	55.6	22.2	46.4	M16	4
UCFC212		60	195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC212-36	1/4		195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC212-38	3/8		195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC212-39	7/16		195	160	113.1	17	19	12	15	35	135	65.1	25.4	56.7	M16	4.9
UCFC213		65	205	170	120.2	16	19	14	15	36	145	65.1	25.4	55.7	M16	5.35
UCFC213-40	1/2		205	170	120.2	16	19	14	15	36	145	65.1	25.4	55.7	M16	5.35
UCFC214		70	215	177	125.1	17	19	14	18	38	150	74.6	30.2	61.4	M16	6.9
UCFC214-44	3/4		215	177	125.1	17	19	14	18	38	150	74.6	30.2	61.4	M16	6.9
UCFC215		75	220	184	130.1	18	19	16	18	39	160	77.8	33.3	62.5	M16	7.5
UCFC215-47	2-15/16		220	184	130.1	18	19	16	18	39	160	77.8	33.3	62.5	M16	7.5
UCFC215-48	1/3		220	184	130.1	18	19	16	18	39	160	77.8	33.3	62.5	M16	7.5
UCFC216		80	240	200	141.4	18	23	16	18	42	170	82.6	33.3	67.3	M20	8.7
UCFC217		85	250	208	147.1	18	23	18	20	45	180	85.7	34.1	69.6	M20	10.3
UCFC217-52	1/4		250	208	147.1	18	23	18	20	45	180	85.7	34.1	69.6	M20	10.3
UCFC218		90	265	220	155.5	22	23	18	20	50	190	96	39.7	78.3	M20	13.5
UCFC218-56	1/2		265	220	155.5	22	23	18	20	50	190	96	39.7	78.3	M20	13.5

Unit No.	Shaft Dia		Mga Dimensyon (mm)											Laki ng Bolt (mm)	Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S	z
	(sa)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	S	z
NAFC201S		12	90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC201-8S	1/2		90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC202S		15	90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC202-10S	5/8		90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC203S		17	90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC203-11S	11/16		90	70	49.5	10	10	4	5	19	55	13.9	33.4	M8	0.6
NAFC201		12	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC201-8	1/2		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC202		15	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC202-10	5/8		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC203		17	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC203-11	11/16		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC204		20	100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC204-12	3/4		100	78	55.1	10	12	5	7	20.5	62	17.1	36.5	M10	0.83
NAFC205		25	115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC205-14	7/8		115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC205-15	15/16		115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC205-16	1/1		115	90	63.6	10	12	6	7	21	70	17.5	36.9	M10	1
NAFC206		30	125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC206-18	1/8		125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC206-19	3/16		125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC206-20	1/4		125	100	70.7	10	12	8	8	23	80	18.3	40.1	M10	1.5
NAFC207		35	135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-20	1/4		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-21	5/16		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-22	3/8		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC207-23	7/16		135	110	77.8	11	14	8	9	26	90	18.8	43.3	M12	1.8
NAFC208		40	145	120	84.8	11	14	10	9	26	100	21.4	45.9	M12	2.2
NAFC208-24	1/2		145	120	84.8	11	14	10	9	26	100	21.4	45.9	M12	2.2
NAFC208-25	9/16		145	120	84.8	11	14	10	9	26	100	21.4	45.9	M12	2.2
NAFC209		45	160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC209-26	5/8		160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC209-27	11/16		160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC209-28	3/4		160	132	93.3	10	16	12	14	26	105	21.4	44.9	M14	2.8
NAFC210		50	165	138	97.6	10	16	12	14	28	110	24.6	48.1	M14	3.3
NAFC210-30	7/8		165	138	97.6	10	16	12	14	28	110	24.6	48.1	M14	3.3
NAFC210-31	1-15/16		165	138	97.6	10	16	12	14	28	110	24.6	48.1	M14	3.3
NAFC211		55	185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC211-32	1/2		185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC211-34	1/8		185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC211-35	3/16		185	150	106.1	13	19	12	15	30	125	27.8	56.6	M16	4.5
NAFC212		60	195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC212-36	1/4		195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC212-38	3/8		195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC212-39	7/16		195	160	113.1	17	19	12	15	35	135	31	63.8	M16	5.7
NAFC213		65	205	170	120.2	16	19	14	15	36	145	34.3	67.6	M16	6.5
NAFC213-40	1/2		205	170	120.2	16	19	14	15	36	145	34.3	67.6	M16	6.5
NAFC214		70	215	177	125.1	17	19	14	18	38	150	34.3	68.6	M16	7.2
NAFC214-44	3/4		215	177	125.1	17	19	14	18	38	150	34.3	68.6	M16	7.2
NAFC215		75	220	184	130.1	18	19	16	18	39	160	37.3	72.8	M16	8
NAFC215-48	1/3		220	184	130.1	18	19	16	18	39	160	37.3	72.8	M16	8

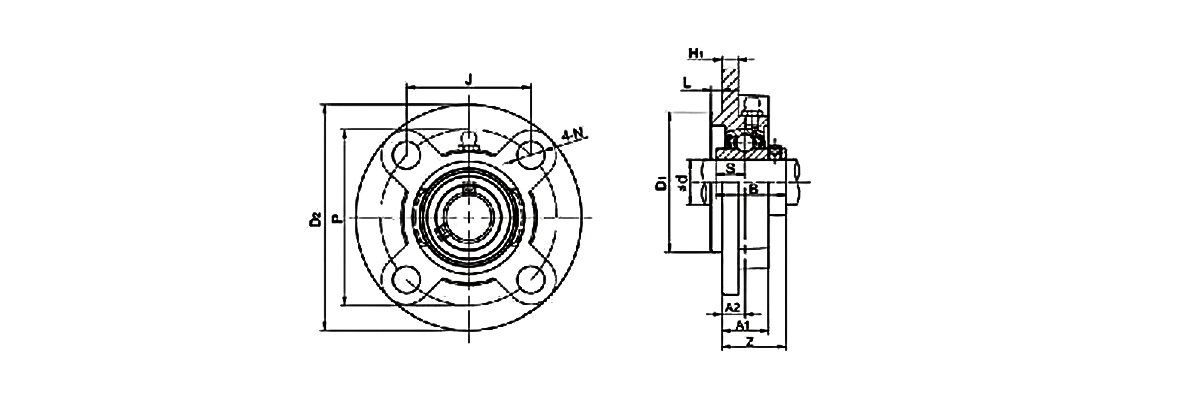

Unit No.	Shaft Dia		Mga Dimensyon(mm)												Laki ng Bolt (mm)	Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B1	S	Z
	(sa)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	B1	S	Z
UEFC204		20	100	78	55.1	10	12	5	7	20.5	62	33	12.7	30.3	M10	0.75
UEFC204-12	3/4		100	78	55.1	10	12	5	7	20.5	62	33	12.7	30.3	M10	0.75
UEFC205		25	115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-14	7/8		115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-15	15/16		115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC205-16	1/1		115	90	63.6	10	12	6	7	21	70	35.4	14.3	31.1	M10	1.06
UEFC206		30	125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-17	1/16		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-18	1/8		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-19	3/16		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC206-20	1/4		125	100	70.7	10	12	8	8	23	80	39.8	15.9	33.9	M10	1.54
UEFC207		35	135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-20	1/4		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-21	5/16		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-22	3/8		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC207-23	7/16		135	110	77.8	11	14	8	9	26	90	43.9	17.5	37.4	M12	1.82
UEFC208		40	145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC208-24	1/2		145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC208-25	9/16		145	120	84.8	11	14	10	9	26	100	50.2	19	42.2	M12	2.23
UEFC209		45	160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-26	5/8		160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-27	11/16		160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC209-28	3/4		160	132	93.3	10	16	12	14	26	105	50.2	19	41.2	M14	2.72
UEFC210		50	165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-30	7/8		165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-31	1-15/16		165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC210-32	1/2		165	138	97.6	10	16	12	14	28	110	52.6	19	43.6	M14	3.24
UEFC211		55	185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-32	1/2		185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-34	1/8		185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC211-35	3/16		185	150	106.1	13	19	12	15	30	125	56.6	22.2	47.4	M16	4.32
UEFC212		60	195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-36	1/4		195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-38	3/8		195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33
UEFC212-39	7/16		195	160	113.1	17	19	12	15	35	135	66.6	25.4	58.2	M16	5.33

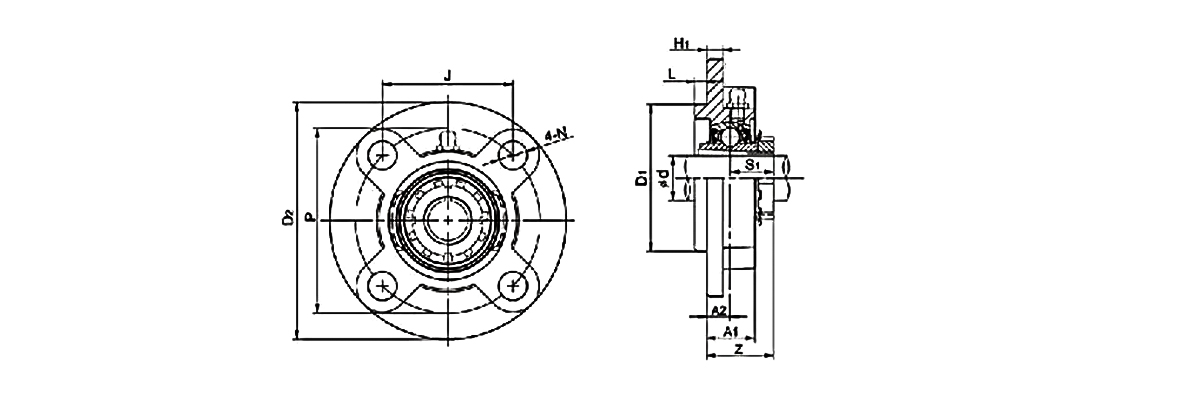

Unit No.	Shaft Dia		Mga Dimensyon (mm)											Laki ng Bolt (mm)	Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S1	Z
	(sa)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	S1	Z
UKFC205 H2305		20	115	90	63.6	10	12	6	7	21	70	18.5	28.5	M10	0.98
UKFC205 HE2305	3/4		115	90	63.6	10	12	6	7	21	70	18.5	28.5	M10	0.98
UKFC206 H2306		25	125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206 HS2306	7/8		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206 HA2306	15/16		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206 HE2306	1/1		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC207 H2307		30	135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC207 HS2307	1/8		135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC207 HA2307	3/16		135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC208 H2308		35	145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2
UKFC208 HE2308	1/4		145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2
UKFC208 HS2308	3/8		145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2
UKFC209 H2309		40	160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC209 HA2309	7/16		160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC209 HE2309	1/2		160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC210 H2310		45	165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC210 HS2310	5/8		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC210 HA2310	11/16		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC210 HE2310	3/4		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3
UKFC211 H2311		50	185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211 HS2311	7/8		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211 HA2311	1-15/16		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211 HE2311	1/2		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC212 H2312		55	195	160	113.1	17	19	12	15	35	135	31	48	M16	4.9
UKFC212 HS2312	1/8		195	160	113.1	17	19	12	15	35	135	31	48	M16	4.9
UKFC213 H2313		60	205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213 HA2313	3/16		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213 HE2313	1/4		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213 HS2313	3/8		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC215 H2315		65	220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC215 HA2315	7/16		220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC215 HE2315	1/2		220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC216 H2316		70	240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC216 HA2316	11/16		240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC216 HE2316	3/4		240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC217 H2317		75	250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC217 HA2317	2-15/16		250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC217 HE2317	1/3		250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC218 H2318		80	265	220	155.5	22	23	18	20	50	190	42	64	M20	13.3

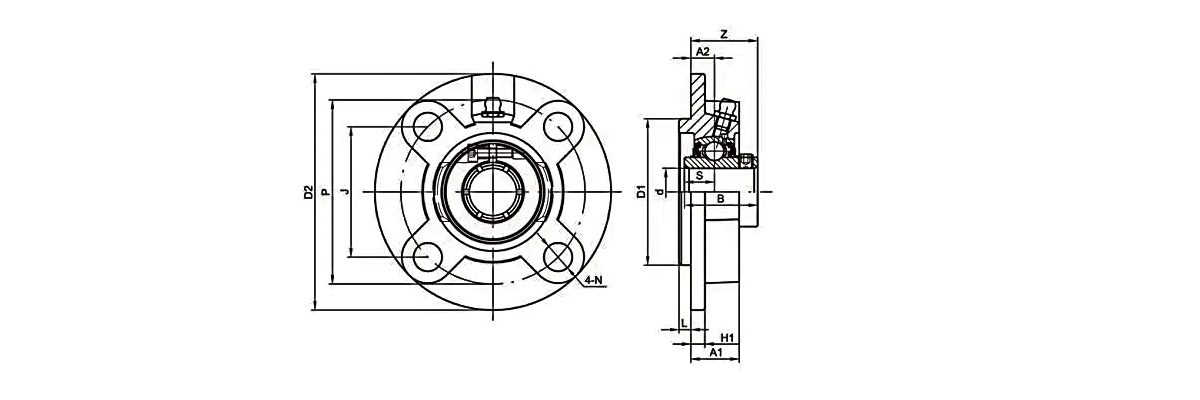

Unit No.	Shaft Dia		Mga Dimensyon (mm)												Sukat ng Bolt		Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	B	S	Z	(mm)	(sa)
	(sa)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	B	S	Z	(mm)	(sa)
UCFCX05		25	111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-13	13/16		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-14	7/8		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-15	15/16		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX05-16	1/1		111	92	65	10	9.5	6	9.5	24	76	38.1	15.9	32.2	M8	5/16	1.2
UCFCX06		30	127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-17	1/16		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-18	1/8		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-19	3/16		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX06-20	1/4		127	105	74.2	8	12	9.5	9.5	22.5	85	42.9	17.5	33.4	M10	3/8	1.5
UCFCX07		35	133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX07-21	5/16		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX07-22	3/8		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX07-23	7/16		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	1.9
UCFCX08		40	133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	2
UCFCX08-24	1/2		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	2
UCFCX08-25	9/16		133	111	78.5	9	12	11	11	26	92	49.2	19	39.2	M10	3/8	2
UCFCX09		45	155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-26	5/8		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-27	11/16		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-28	3/4		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX09-29	1-13/16		155	130	91.9	8	14	12	11	25	108	51.6	19	40.6	M12	7/16	2.6
UCFCX10		50	162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX10-30	7/8		162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX10-31	1-15/16		162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX10-32	1/2		162	136	96.2	7	14	16	11	25	118	55.6	22.2	40.4	M12	7/16	3.2
UCFCX11		55	180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-33	1/16		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-34	1/8		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-35	3/16		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-36	1/4		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX11-37	5/16		180	152	107.5	4	16	22	13	26	127	65.1	25.4	43.7	M14	1/2	4.3
UCFCX12		60	194	165	116.7	11	16	20	14	33	140	65.1	25.4	50.7	M14	1/2	5.3
UCFCX12-38	3/8		194	165	116.7	11	16	20	14	33	140	65.1	25.4	50.7	M14	1/2	5.3
UCFCX12-39	7/16		194	165	116.7	11	16	20	14	33	140	65.1	25.4	50.7	M14	1/2	5.3
UCFCX13		65	194	165	116.7	11	16	20	14	33	140	74.6	30.2	55.4	M14	1/2	5.7
UCFCX13-40	1/2		194	165	116.7	11	16	20	14	33	140	74.6	30.2	55.4	M14	1/2	5.7
UCFCX13-41	9/16		194	165	116.7	11	16	20	14	33	140	74.6	30.2	55.4	M14	1/2	5.7
UCFCX14		70	222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX14-42	5/8		222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX14-43	1/16		222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX14-44	3/4		222	190	134.3	14	19	20	14	36	164	77.8	33.3	58.5	M16	5/8	7.3
UCFCX15		75	222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-45	2-13/16		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-46	7/8		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-47	2-15/16		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX15-48	1/3		222	190	134.3	12	19	22	16	35	164	82.6	33.3	61.3	M16	5/8	8
UCFCX16		80	260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-49	1/16		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-50	1/8		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-51	3/16		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX16-52	1/4		260	219	154.8	10	23	25	19	36	186	85.7	34.1	61.6	M20	5/8	11.3
UCFCX17		85	260	219	154.8	10	23	25	19	36	186	96	39.7	66.3	M20	3/4	12.9
UCFCX17-53	5/16		260	219	154.8	10	23	25	19	36	186	96	39.7	66.3	M20	3/4	12.9
UCFCX17-55	7/16		260	219	154.8	10	23	25	19	36	186	96	39.7	66.3	M20	3/4	12.9

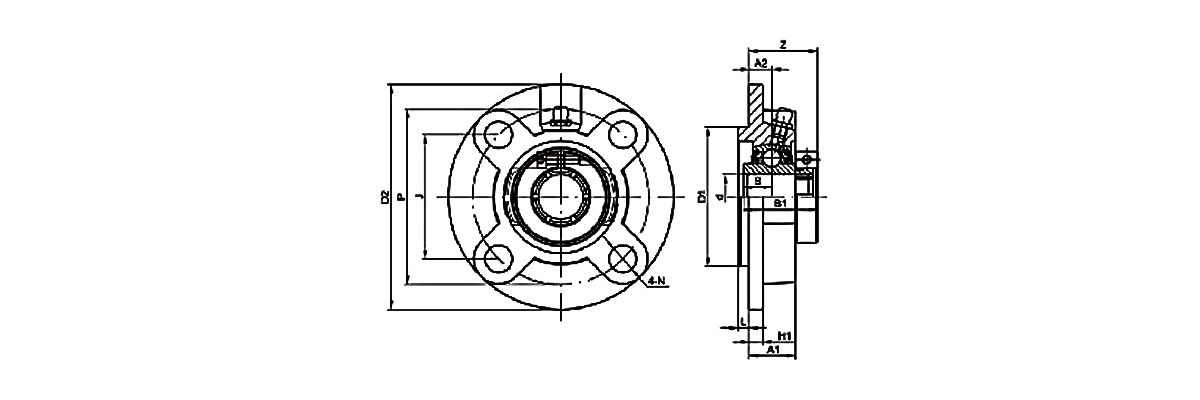

Unit No.	Shaft Dia		Mga Dimensyon (mm)												Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S	B	Z
	(sa)	(mm)
UCFCS206		30	111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.26
UCFCS206-17	1/16
UCFCS206-18	1/8
UCFCS206-19	3/16
UCFCS206-20	1/4
UCFCS207		35	127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	1.84
UCFCS207-20	1/4
UCFCS207-21	5/16
UCFCS207-22	3/8
UCFCS207-23	7/16
UCFCS208		40	133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.02
UCFCS208-24	1/2
UCFCS208-25	9/16
UCFCS209		45	155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	2.78
UCFCS209-26	5/8
UCFCS209-27	11/16
UCFCS209-28	3/4
UCFCS210		50	155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.76
UCFCS210-30	7/8
UCFCS210-31	1-15/16
UCFCS210-32	1/2
UCFCS211		55	162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.29
UCFCS211-32	1/2
UCFCS211-34	1/8
UCFCS211-35	3/16
UCFCS212		60	180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	4.61
UCFCS212-36	1/4
UCFCS212-37	5/16
UCFCS212-38	3/8
UCFCS212-39	7/16
UCFCS213		65	193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	5.91
UCFCS213-39	7/16
UCFCS213-40	1/2
UCFCS214		70	193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	25.4	74.6	55.3	7.98
UCFCS214-43	11/16
UCFCS214-44	3/4
UCFCS215		75	222.2	190.5	134.7	14	17.5	20	16	36	161.925	25.4	77.8	58.5	8.34
UCFCS215-47	2-15/16
UCFCS215-48	1/3

Unit No.	Shaft Dia		Mga Dimensyon (mm)												Timbang (kg)
	d		D2	P	J	A2	N	L	H1	A1	D1	S	B	Z
	(sa)	(mm)	D2	P	J	A2	N	L	H1	A1	D1	S	B	Z
UCFCSX05		25	111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-13	13/16		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-14	7/8		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-15	15/16		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX05-16	1/1		111	92.08	65.11	9.9	12	6.1	9.4	23.9	76.2	15.9	38.1	32.1	1.34
UCFCSX06		30	127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-17	1/16		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-18	1/8		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-19	3/16		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX06-20	1/4		127	104.78	74.09	7.9	12	9.4	9.4	22.6	85.725	17.5	42.9	33.3	2.06
UCFCSX07		35	133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX07-21	5/16		133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX07-22	3/8		133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX07-23	7/16		133.1	111.1	78.56	8.9	12	10.9	10.9	25.9	92.075	19	49.2	39.1	2.21
UCFCSX08		40	155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	3.03
UCFCSX08-24	1/2		155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	3.03
UCFCSX08-25	9/16		155.5	130.18	92.05	7.9	14	10.9	10.9	25.4	107.95	19	49.2	38.1	3.03
UCFCSX09		45	155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX09-26	5/8		155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX09-27	11/16		155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX09-28	3/4		155.5	130.18	92.05	7.9	14	11.9	10.9	24.9	107.95	19	51.6	40.5	2.98
UCFCSX10		50	162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX10-30	7/8		162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX10-31	1-15/16		162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX10-32	1/2		162	136.5	96.52	7.1	14	16	10.9	25.9	114.3	22.2	55.6	40.5	3.57
UCFCSX11		55	180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-33	1/16		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-34	1/8		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-35	3/16		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX11-36	1/4		180.8	152.4	107.76	4	14	22.1	13	25.9	127	25.4	65.1	43.7	5
UCFCSX12		60	193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	6.32
UCFCSX12-38	3/8		193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	6.32
UCFCSX12-39	7/16		193.8	165.1	116.74	10.9	14	20	14	33	139.7	25.4	65.1	50.6	6.32
UCFCSX13		65	193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	30.2	74.6	55.3	8.25
UCFCSX13-40	1/2		193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	30.2	74.6	55.3	8.25
UCFCSX13-41	9/16		193.7	165.1	116.74	10.9	14	20	14	33.3	139.7	30.2	74.6	55.3	8.25
UCFCSX14		70	222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX14-42	3/8		222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX14-43	11/16		222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX14-44	3/4		222.2	190.5	134.7	14	17.5	20	16	36	161.925	33.3	77.8	58.5	8.6
UCFCSX15		75	222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-45	2-13/16		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-46	7/8		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-47	2-15/16		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX15-48	1/3		222.2	190.5	134.7	11.9	17.5	22.1	16	35	161.925	33.3	82.6	61.2	8.76
UCFCSX17		85	260	218.95	154.82	9.9	20.6	24.9	19	36	187.325	39.7	96	66.2	13.41
UCFCSX17-53	5/16		260	218.95	154.82	9.9	20.6	24.9	19	36	187.325	39.7	96	66.2	13.41
UCFCSX17-55	7/16		260	218.95	154.82	9.9	20.6	24.9	19	36	187.325	39.7	96	66.2	13.41
UCFCSX20		100	276	238	168.29	22	23	28	22	66	206.375	79.2	117.5	90.3	18.5
UCFCSX20-63	3-15/16		276	238	168.29	22	23	28	22	66	206.375	79.2	117.5	90.3	18.5
UCFCSX20-64	1/4		276	238	168.29	22	23	28	22	66	206.375	79.2	117.5	90.3	18.5

Pag-enginyero sa Kinabukasan ng Paggalaw

Tungkol sa UKL

Itinatag noong 2020, ang UKL Bearing Manufacturing Co., Ltd. (Wuxi) ay Tsina Flange Cartridge Bearing Units mga supplier at OEM/ODM Flange Cartridge Bearing Units kumpanya, isang pinagsamang industriyal at pangkalakal na negosyo na nakatuon sa precision manufacturing, na pinagsasama ang R&D, produksyon, at pagbebenta.
Ang kumpanya ay dalubhasa sa mga high-performance bearing solutions, na nagbibigay ng teknikal na suporta para sa mga pandaigdigang industriya na may napakataas na pangangailangan para sa katumpakan at pagiging maaasahan.

Sa mahigit 200 bihasang propesyonal at isang ganap na modernisadong production base, ang mga pasilidad ng UKL ay sumasaklaw sa buong proseso ng pagmamanupaktura — forging, annealing, turning, heat treatment, grinding, at automated assembly.
Gamit ang mahigit 15 taong karanasan sa OEM/ODM export, mabilis na tumutugon ang UKL sa mga pangangailangan ng customer, na nag-aalok ng flexible at customized na serbisyo para sa mga kliyente sa Europa, Asya, Aprika, at Gitnang Silangan.

Higit Pa Tungkol sa Amin Ukl Bearing Manufacturing Co.,Ltd

0+

taon

Karanasan sa Industriya
0+

Pagkakaiba-iba ng Modelo
0+

Bilang ng mga Empleyado
0

$

Taunang halaga ng export

Sertipiko ng Karangalan

Balita

Ang Kritikal na Papel ng RB2508 Crossed Roller Bearings sa Pagsulong ng Robot Joint Precision at Compact Design
30 Jul, 2026
Ang Ebolusyon ng Robot Joint Engineering: Isang Pagbabago Tungo sa Compact Precision Ang mga robotics sa industriya ay sumailalim sa isang malalim na pagbabago sa nakalipas na dekada. Ang ...

MAGBASA PA
Ang Ultimate Buying Guide sa Crossed Tapered Roller Bearings para sa High-Precision Applications
23 Jul, 2026
Pag-unawa sa Crossed Tapered Roller Bearings sa Modern Engineering Ang mga crossed tapered roller bearings ay kumakatawan sa isang makabuluhang pag-unlad sa mechanical engineering, na nag-...

MAGBASA PA
SIZJ12 Rod End Bearing Selection Guide: Bakit Ito Napakahusay sa Demanding Application
15 Jul, 2026
Panimula: Ang Engineering Backbone ng Articulated Systems Sa mekanikal na disenyo, ilang mga bahagi ang kasing simple ng mapanlinlang ngunit kritikal na mahalaga gaya ng rod end bearing. A...

MAGBASA PA
Bakit Pumili ng 331138 AG Higit sa Alternatibong Four-Row Tapered Roller Bearings para sa Rolling Mill Applications?
08 Jul, 2026
Ang pagpili ng isang four-row tapered roller bearing para sa rolling mill roll neck application ay bihirang isang tapat na pagpipilian. Dapat suriin ng mga inhinyero at propesyonal sa pagpap...

MAGBASA PA
