SIBP/SABP Precision Rod End Bearing

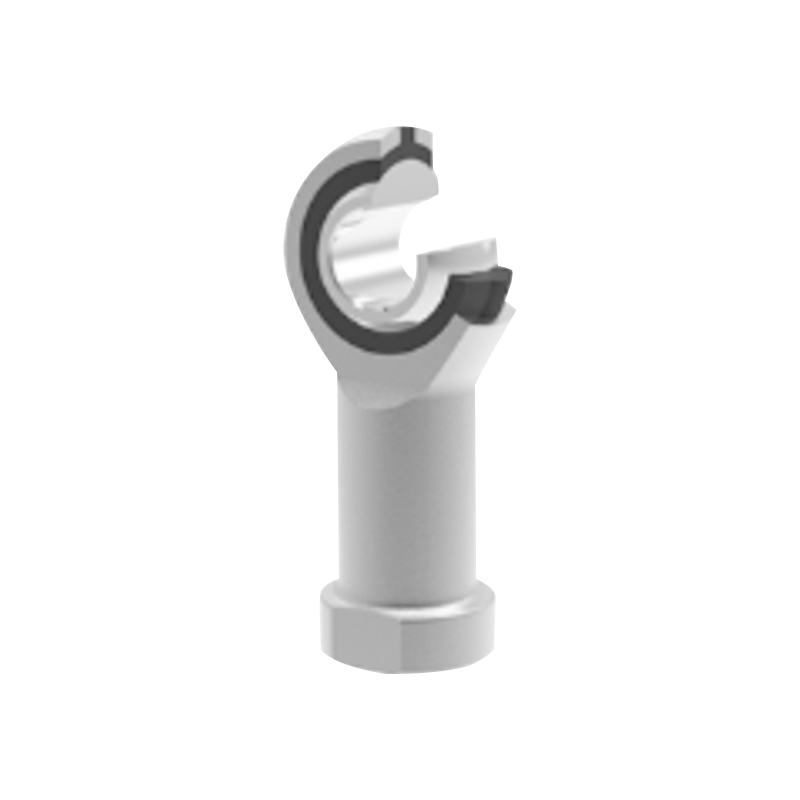

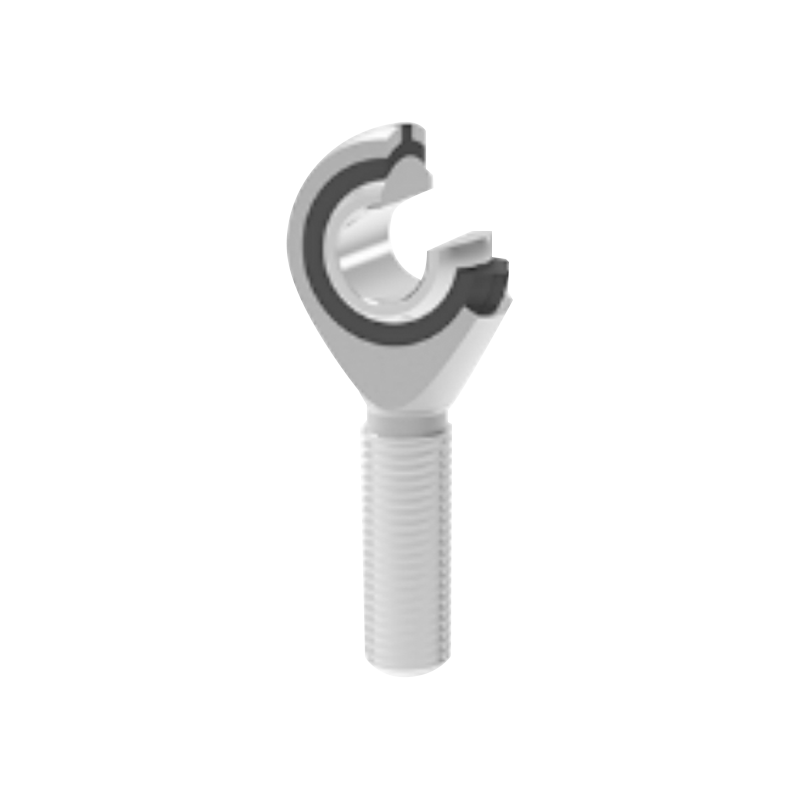

Ang seryeng ito ay binubuo ng compact, self-lubricating rod end spherical bearings, na binubuo ng rod end body, inner ring, at PTFE plastic liner. Ang rod end body ay gawa sa carbon steel na may galvanized na ibabaw; ang inner ring ay gawa sa bearing steel, hardened, at spherically hard chrome plated. Direktang tumutugma ang sliding surface nito sa PTFE plastic, na nakakakuha ng operasyon na walang lubrication.

Contact Us Makipag-ugnayan sa Amin
PREV：SIK/SAK Walang Pagpapanatili ng Self-Lubricating Rod End Bearings SUSUNOD：SIZP Threaded Self-Lubricating Rod End Bearing na may PTFE Insert
  • Paglalarawan
  • Mga pagtutukoy
  • Makipag-ugnayan sa Amin

· Numero ng Produkto:
SIBP…N 5～20
SABP…N 5～20
·Pares ng Sliding Friction: Bakal / PTFE Plastic
· Saklaw ng Temperatura sa Pagpapatakbo: -40℃～＋75℃
· Mga Pagpipilian sa Pag-customize:
Pag-customize ng Thread: Ang pag-customize ng hindi karaniwang pitch o espesyal na katumpakan ng thread ay sinusuportahan.
Kaliwang thread: Ang numero ng modelo at pagmamarka ng thread ng mga kaliwang thread ay dapat may kasamang "L" at "kaliwa." Halimbawa:
Panloob na thread: SILBP20N M20×1.5 left 6H
Panlabas na thread: SALBP20N M20×1.5 natitira 6g
Ang mga rod end bearings na may iba't ibang pitch o espesyal na mga kinakailangan sa katumpakan ng thread ay magagamit.
Kung ito ay isang left-hand thread, ang bearing model at thread mark ay kailangang markahan ng "L" at "left", halimbawa: SILBP20N M20×1.5 left 6H, SALBP20N M20×1.5 left 6g.

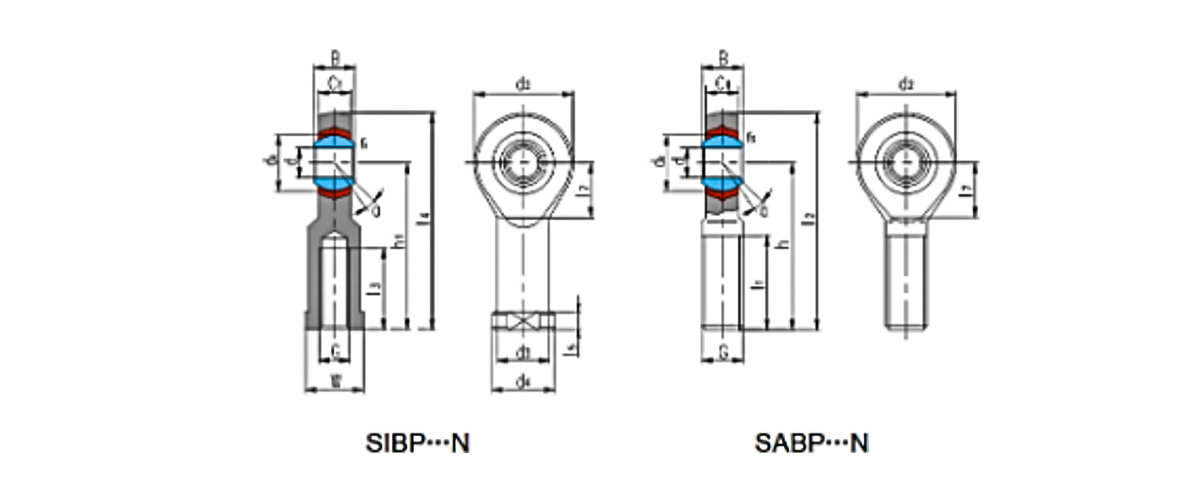

tindig
numero 		Mga sukat
mm/pulgada 		Mag-load ng mga rating
kN 		Timbang
≈kg
d B dₖ C₁
max 		d₂ G
6H 		h₁ I₃
min 		ako₄ ako₅ ako₇ W d₃ d₄ rₛ
min 		α°
≈ 		Dynamic Static
SIBP5N 5 8 11.112 6 16 M5 27 14 35 4 B 9 9 11 0.3 13 3.25 5.3 0.016
SIBP6N 6 9 12.7 6.75 18 M6 30 14 39 5 9 11 10 13 0.3 13 4.25 6.8 0.028
SIBP8N 8 12 15.88 9 22 M8 36 17 47 5 11 14 12.5 16 0.3 14 7.1 114 0.044
SIBP10N 10 14 19.05 10.5 26 M10 43 21 56 6.5 13 17 15 19 0.3 14 9.8 14.3 0.072
SIBP12N 12 16 22.23 12 30 M12 50 24 65 6.5 15 19 17.5 22 0.3 13 13.2 17 0.108
SIBP14N 14 19 25.4 13.5 34 M14 57 27 74 8 16 22 20 25 0.3 16 17 27.5 0.161
SIBP16N 16 21 28.58 15 38 M16 64 33 83 8 17.5 22 22 27 0.3 15 21.4 34.5 0.225
SIBP18N 18 23 31.75 16.5 42 M18×1.5 71 36 92 10 19.5 27 25 31 0.6 15 26 41.5 0.295
SIBP20N 20 25 34.93 18 48 M20×1.5 77 40 100 10 21.5 30 27.5 34 0.6 15 31 50 0.382

tindig
numero 		Mga sukat
mm/pulgada 		Mag-load ng mga rating
KN 		Timbang
≈kg
d B dₖ C₁
max 		d₂ G
6g 		h I₁
min 		I₂ ako₇ rₛ
min 		α°
≈ 		Dynamic Static
SABP6N 5 8 11.112 6 16 M5 33 20 41 - 0.3 13 3.25 5.3 0.016
SABP6N 6 9 12.7 6.75 18 M6 36 22 45 - 0.3 13 4.25 6.8 0.026
SABP8N B 12 15.88 9 22 M8 42 25 53 - 0.3 14 7.1 10 0.044
SABP10N 10 14 19.05 10.5 26 M10 48 29 61 - 0.3 14 9.8 12.5 0.072
SABP12N 12 16 22.23 12 30 M12 54 33 69 - 0.3 13 13.2 15 0.108
SABP14N 14 19 25.4 13.5 34 M14 80 38 77 - 0.3 16 17 25.5 0.161
SABP16N 16 21 28.58 15 38 M16 86 40 85 - 0.3 15 21.4 34.5 0.225
SABP18N 18 23 31.75 16.5 42 M18×1.5 72 44 93 23 0.6 15 26 41.5 0.295
SABP20N 20 25 34.93 18 46 M20×1.5 78 47 101 25 0.6 15 31 50 0.382
