SIZP Threaded Self-Lubricating Rod End Bearing na may PTFE Insert

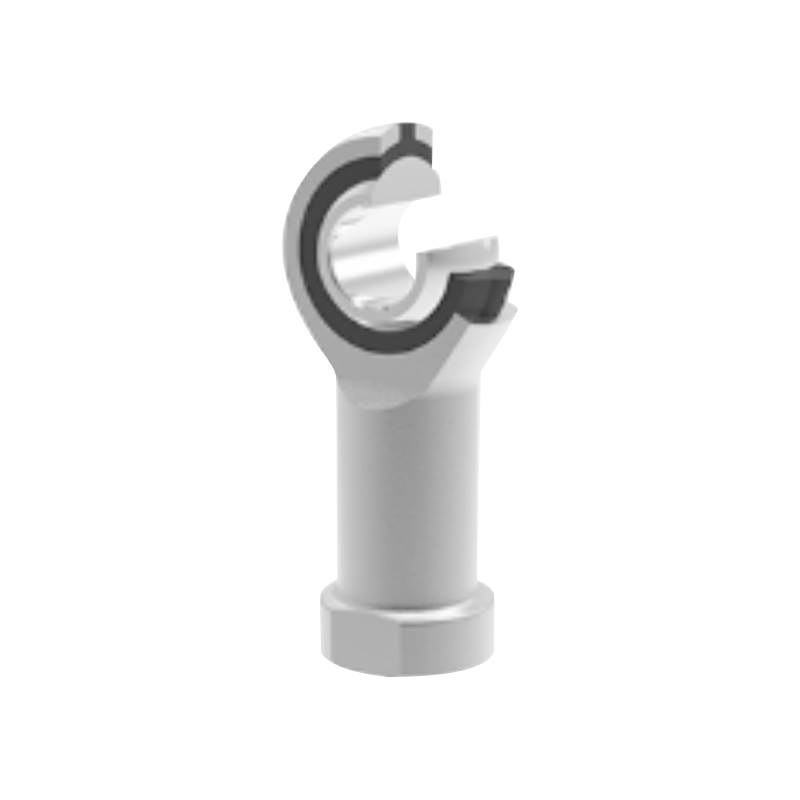

Ang seryeng ito ay isang self-lubricating rod end bearing na may panloob na mga thread, na nagtatampok ng naka-streamline na three-piece structure: rod end body, inner ring, at PTFE plastic liner. Ang rod end body ay gawa sa carbon steel na may galvanized na ibabaw; ang inner ring ay gawa sa high-carbon chromium bearing steel, pinatigas sa pamamagitan ng pagsusubo at pagkatapos ay spherically plated na may hard chrome upang matiyak ang mahusay na wear resistance. Ang disenyo nito ay nagbibigay-daan para sa ganap na walang maintenance na operasyon.

Contact Us Makipag-ugnayan sa Amin
PREV：SIBP/SABP Precision Rod End Bearing SUSUNOD：SAZP High-Performance Threaded Rod End Bearing
  • Paglalarawan
  • Mga pagtutukoy
  • Makipag-ugnayan sa Amin

· Numero ng Produkto: SIZP…N 4.83～19.05
·Pares ng Sliding Friction: Bakal / PTFE Plastic
· Saklaw ng Temperatura sa Pagpapatakbo: -40℃～＋75℃
· Mga Pagpipilian sa Pag-customize:
Katumpakan ng Thread: Ang mga custom na produkto na may iba't ibang mga marka ng katumpakan ng thread ay magagamit kapag hiniling.
Kaliwang Thread: Dapat na may kasamang "L" at "LH" ang mga modelo at marking ng thread sa kaliwang kamay, halimbawa: SILZP12N 1/2-20 UNF 2B LH

tindig

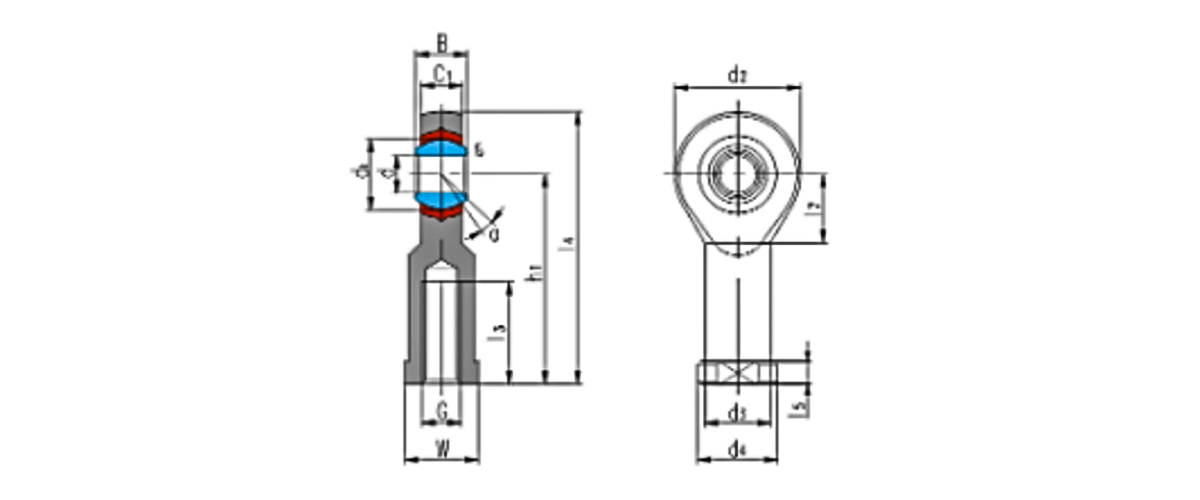

numero 		Mga sukat
mm/pulgada 		Mag-load ng mga rating
kN 		Timbang
≈kg
d B dₖ C₁
max 		d₂ G
UNF-2B 		h₁ I₃
min 		ako₄ ako₅ ako₇ W d₃ d₄ rₛ
min 		α°
≈ 		Dynamic Static
SIZP4N 4.83 7.92 11.1 6.35 15.88 10-32 26.97 14.27 34.83 4.75 9 7.92 7.54 10.31 0.3 10 3.3 5.38 0.015
0.19 0.312 0.437 0.25 0.625 1.082 0.582 1.375 0.187 0.354 0.312 0.297 0.408 0.012
SIZP6N 6.35 9.53 12.7 7.14 19.05 1/4-28 33.32 19.05 42.85 4.75 10.5 9.53 9.15 11.91 0.3 13 6.8 10.9 0.025
0.25 0.375 0.5 0.281 0.75 .312 0.75 1.687 0.187 0.413 0.375 0.36 0.489 0.012
SIZP7N 7.94 11.10 15.88 8.74 22.23 5/16-24 34.93 19.05 46.02 4.75 117 11.1 0.72 2.70 0.3 10 7.6 12.2 0.036
0.3125 0.437 0.625 0.344 0.875 1.375 0.75 1.812 0.187 0.481 0.437 0.422 0.5 0.012
SIZP9N 9.53 12.70 18.26 10.31 25.40 3/8-24 41.28 23.80 53.98 6.35 12.3 14.27 3.89 17.45 0.6 9 11.9 18.2 0.061
0.375 0.5 0.719 0.406 1 1.625 0.937 2.125 0.25 0.484 0.582 0.547 0.687 0.024
SIZP11N 11.1 14.27 20.62 11.1 28.58 7/16-20 46.02 26.97 60.33 6.35 14 5.88 5.49 9.05 0.6 11 17.4 23.8 0.081
0.4375 0.582 0.812 0.437 1.125 1.812 1.082 2.375 0.25 0.551 0.625 0.61 0.75 0.024
SIZP12N 12.7 15.88 23.81 12.7 33.32 1/2-20 53.98 30.15 70.64 6.35 16.2 9.05 8.67 22.23 0.6 9 19.9 28.6 0.133
0.5 0.625 0.937 0.5 1.312 2.125 1.187 2.781 0.25 0.638 0.75 0.735 0.875 0.024
SIZP15N 15.88 19.05 28.58 14.27 38.10 5/8-18 63.50 38.10 82.55 7.92 18.2 22.23 21.84 25.40 0.6 11 22.9 38.9 0.190
0.625 0.75 1.125 0.562 1.5 2.5 1.5 3.25 0.312 0.717 0.875 0.86 1 0.024
SIZP19N 19.05 22.23 33.32 17.45 44.45 3/4-16 73.03 44.45 95.25 7.92 20.9 25.4 25.02 28.58 0.6 10 30.2 48.5 0.285
0.75 0.875 1.312 0.687 1.75 2.875 1.75 3.75 0.312 0.823 1 0.985 1.125 0.024
