Cross Roller Bearing Manufacturers

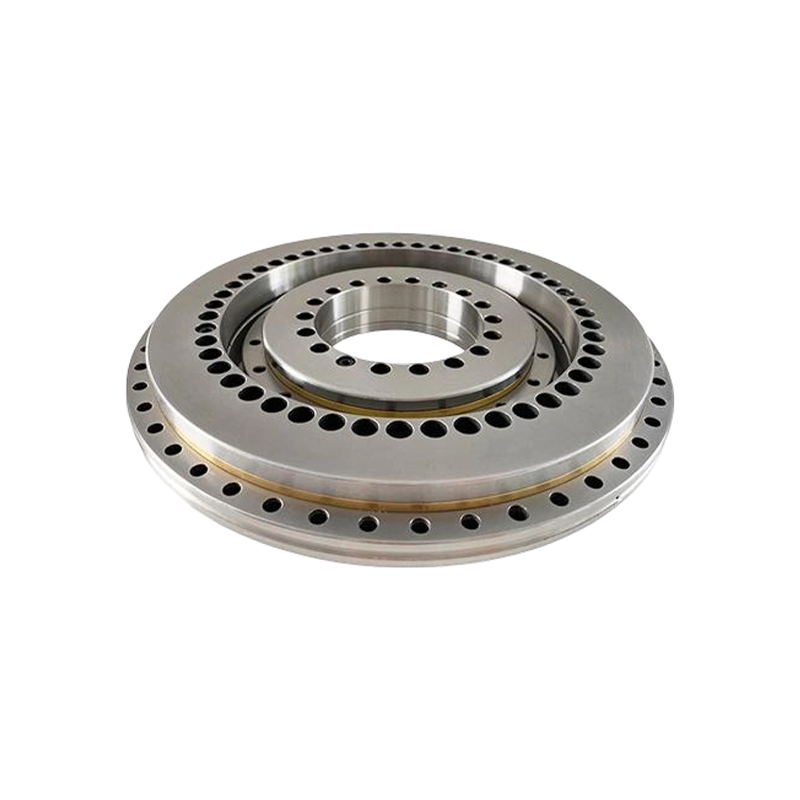

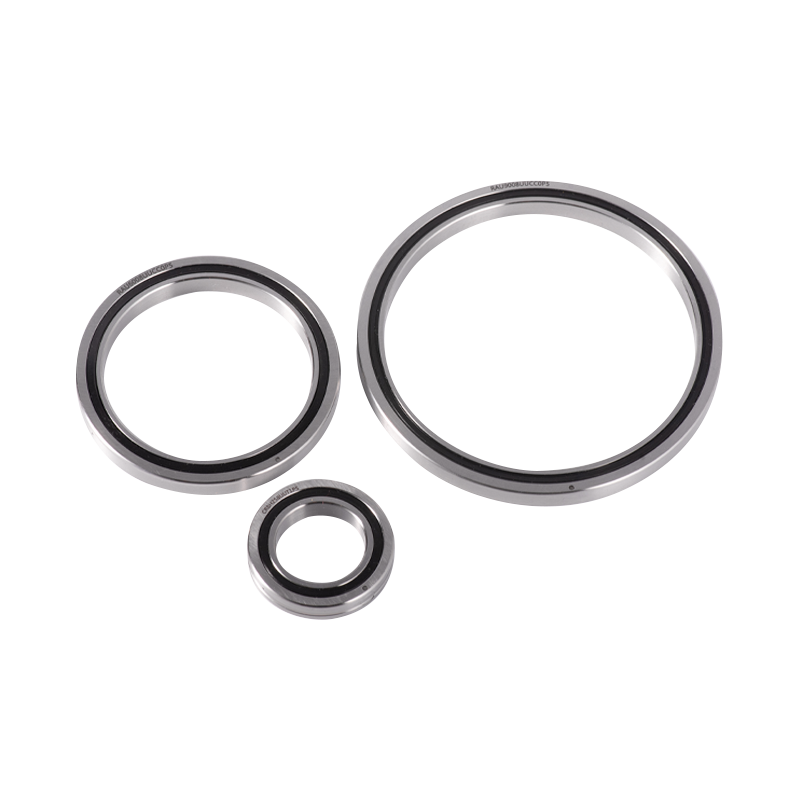

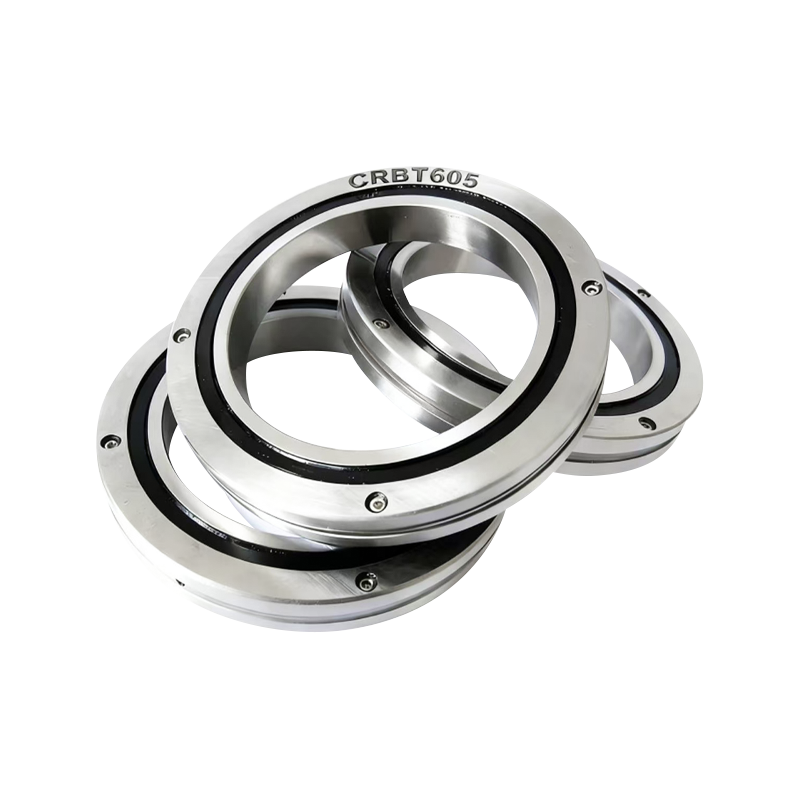

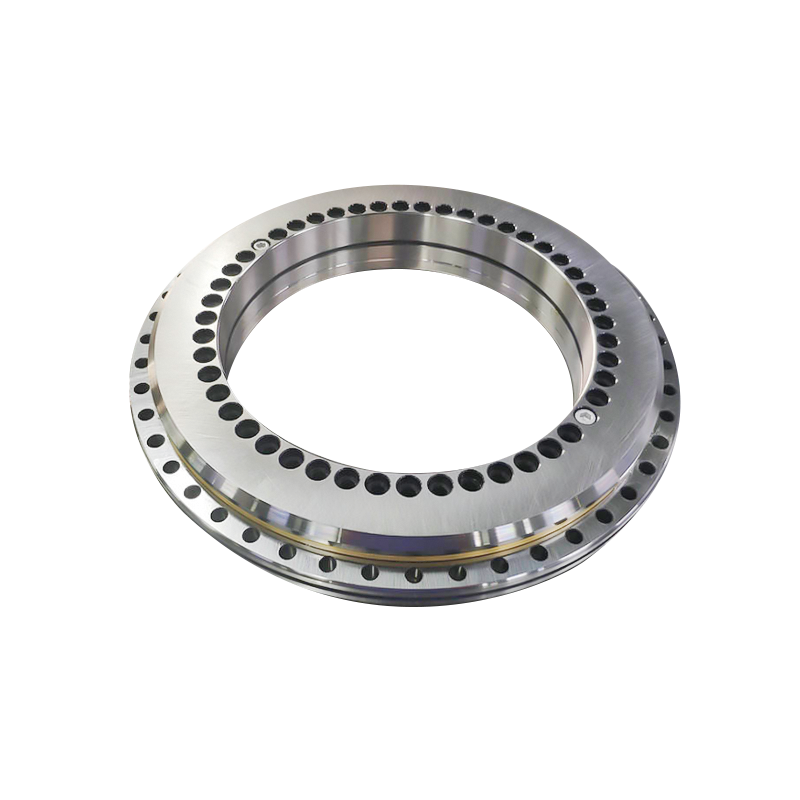

Crossed Roller Bearings (Cross-Roller Bearings)Crossed Roller Bearings, na kilala rin bilang cross-roller bearings, ay gumagamit ng panloob na istraktura kung saan ang mga cylindrical roller ay nakaayos nang crosswise sa 90° anggulo sa bawat isa sa loob ng V-shaped raceways. Inilalagay ang mga separator o spacer sa pagitan ng mga roller. Binibigyang-daan ng istrukturang ito ang isang bearing na sabay-sabay na humawak ng mga load sa lahat ng direksyon, kabilang ang mga radial load, axial load, at overturning moments. Ang mga bearings ay nailalarawan sa pamamagitan ng kanilang minimal na pangkalahatang sukat (miniaturization), mataas na tigas, mataas na katumpakan ng pag-ikot, at pinagsamang kapasidad na nagdadala ng pagkarga. Samakatuwid, ang mga ito ay pinakaangkop para sa: Mga joint o umiikot na bahagi ng mga robot na pang-industriya. Umiikot na mga bahagi ng mga manipulator/robot na kamay.Mga rotary table ng mga machining center.Precision rotary tables.Mga medikal na kagamitan.Mga instrumento sa pagsukat.IC manufacturing equipment, at iba pang mga application. Mga Uri ng Structural ng Crossed Roller Bearings Ang mga crossed roller bearings ay karaniwang inuri sa tatlong structural forms: Outer ring separable, inner ring integrated. Panlabas na singsing isinama, panloob na singsing na mapaghihiwalay. Ang parehong panlabas at panloob na mga singsing ay pinagsama.
1. Uri ng RB (Separable Outer Ring, Integrated Inner Ring)Istruktura: Ang panlabas na singsing ay nahahati sa dalawang piraso, habang ang panloob na singsing ay iisa, pinagsamang bahagi.Application: Angkop para sa mga application na nangangailangan ng mataas na rotational accuracy ng inner ring.

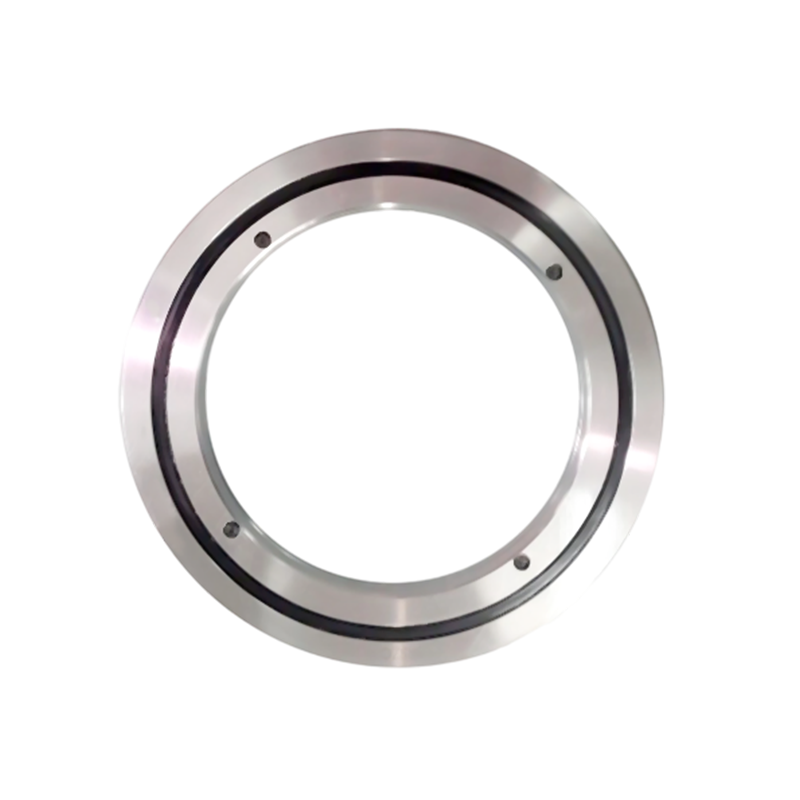

2. Uri ng RE (Integrated Outer Ring, Separable Inner Ring)Istruktura: May parehong panlabas na dimensyon gaya ng uri ng RB, ngunit ang panlabas na singsing ay isinama, at ang panloob na singsing ay nahahati sa dalawang piraso.Application: Angkop para sa mga application na nangangailangan ng mataas na rotational accuracy ng panlabas na singsing.
3. Uri ng RU (Integrated Inner and Outer Rings, with Mounting Holes)Istruktura: Parehong inner at outer rings ay pinagsama at nagtatampok ng mga mounting hole. Inaalis nito ang pangangailangan para sa pag-aayos ng mga flanges at mga upuan ng suporta, na ginagawa itong napaka-maginhawang gamitin. Pagganap: Dahil ang panloob at panlabas na mga singsing ay pinagsama, ang pag-install ay may kaunting epekto sa pagganap, na tinitiyak ang matatag na rotational accuracy at torque.Application: Angkop para sa mga application na nangangailangan ng mataas na rotational accuracy para sa parehong panloob at panlabas na mga singsing.

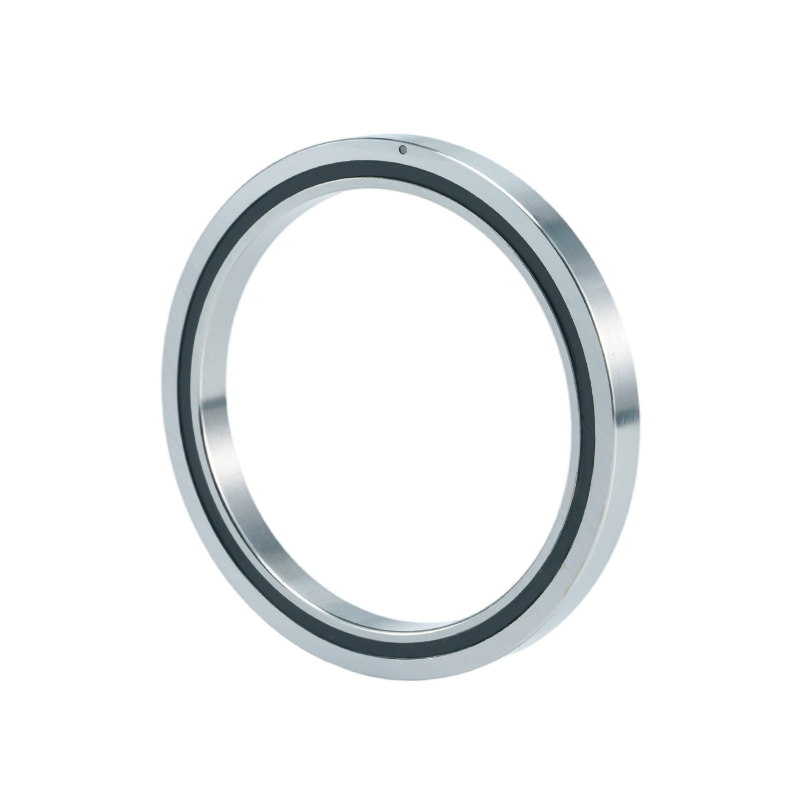

4. Uri ng RA (Separable Outer Ring, Integrated Inner Ring, Ultra-Thin) Structure: Isang ultra-manipis na disenyo kung saan ang kapal ng panloob at panlabas na mga singsing ay nababawasan sa maximum na lawak. Ang istraktura ay pareho sa uri ng RB, na may split outer ring. Application: Angkop para sa mga bahaging nangangailangan ng magaan at compact na disenyo, tulad ng mga umiikot na seksyon ng mga robot at manipulator.
5. Uri ng RBH (Integrated Inner and Outer Rings, Ultra-Thin) Structure: Ultra-manipis na disenyo na may pinagsamang panloob at panlabas na mga singsing, ngunit walang mga mounting hole. Nangangailangan ng pag-aayos gamit ang mga flanges at suportang upuan sa panahon ng pag-install.Pagganap: Pinipigilan ng pinagsamang istraktura ng parehong singsing ang pagkasira ng pagganap dahil sa pag-install, na tinitiyak ang matatag na rotational accuracy at torque.Application: Angkop para sa mga application na nangangailangan ng maliit na sukat (miniaturization) habang pinapanatili ang mataas na rotational accuracy para sa parehong panloob at panlabas na mga ring.

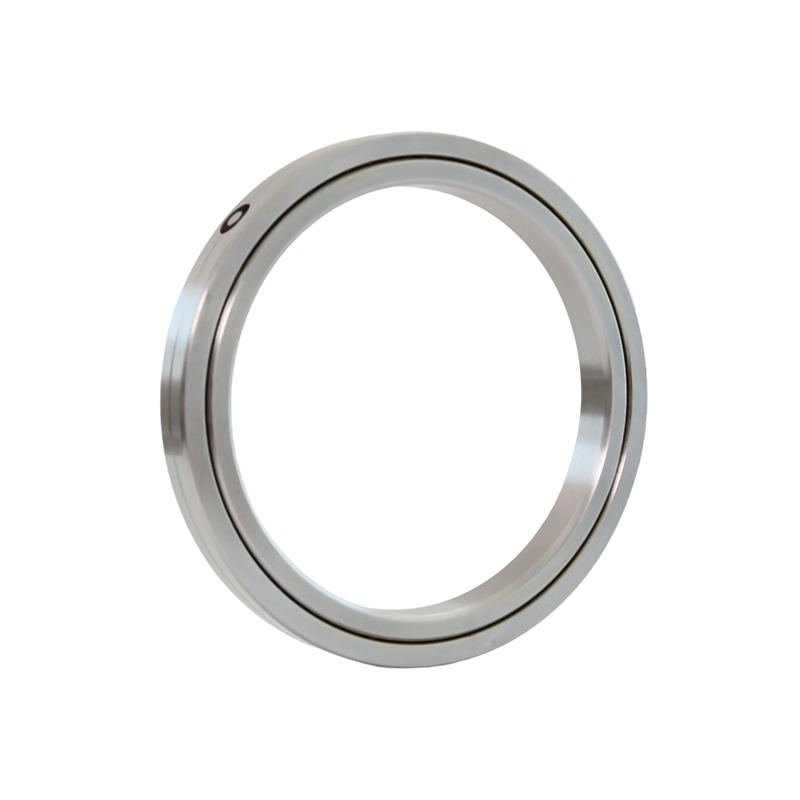

6. Uri ng SX (Integrated Inner Ring, Separable Outer Ring, Ultra-Thin) Structure: Para sa parehong diameter ng shaft, ang SX type ay may mas maliit na cross-section kaysa sa RB type. Dahil sa ultra-manipis na disenyo, ang panloob o panlabas na mga singsing ay walang mga mounting hole, na nangangailangan ng pag-aayos gamit ang mga flanges at bearing seat sa panahon ng pag-install. Application: Angkop para sa mga application kung saan umiikot ang inner ring.

Inhinyero ang Kinabukasan ng Paggalaw
Tungkol sa UKL
Founded in 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) is China Cross Roller Bearing manufacturers and Cross Roller Bearing factory, an integrated industrial and trading enterprise that focuses on precision manufacturing, combining R&D, production, and sales.
The company specializes in high-performance bearing solutions, providing technical support for global industries with exceptionally high demands for precision and reliability.

With more than 200 skilled professionals and a fully modernized production base, UKL’s facilities cover the entire manufacturing process — forging, annealing, turning, heat treatment, grinding, and automated assembly.
Leveraging over 15 years of OEM/ODM export experience, UKL responds quickly to customer needs, offering flexible and customized services for clients across Europe, Asia, Africa, and the Middle East.

Ukl Bearing Manufacturing Co.,Ltd Higit Pa Tungkol sa Amin Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    taon

    Karanasan sa Industriya

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Pagkakaiba-iba ng modelo

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Bilang ng mga Empleyado

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Taunang halaga ng pag-export

Ukl Bearing Manufacturing Co.,Ltd
Sertipiko ng karangalan
Balita
Cross Roller Bearing Industry knowledge

In the world of precision engineering, the demand for components that offer simultaneous high rigidity, space-saving designs, and multi-directional load capacity has never been higher. Cross Roller Bearings have emerged as the gold standard for high-performance rotary motion, particularly in industries where precision is non-negotiable.

What Are Cross Roller Bearings?

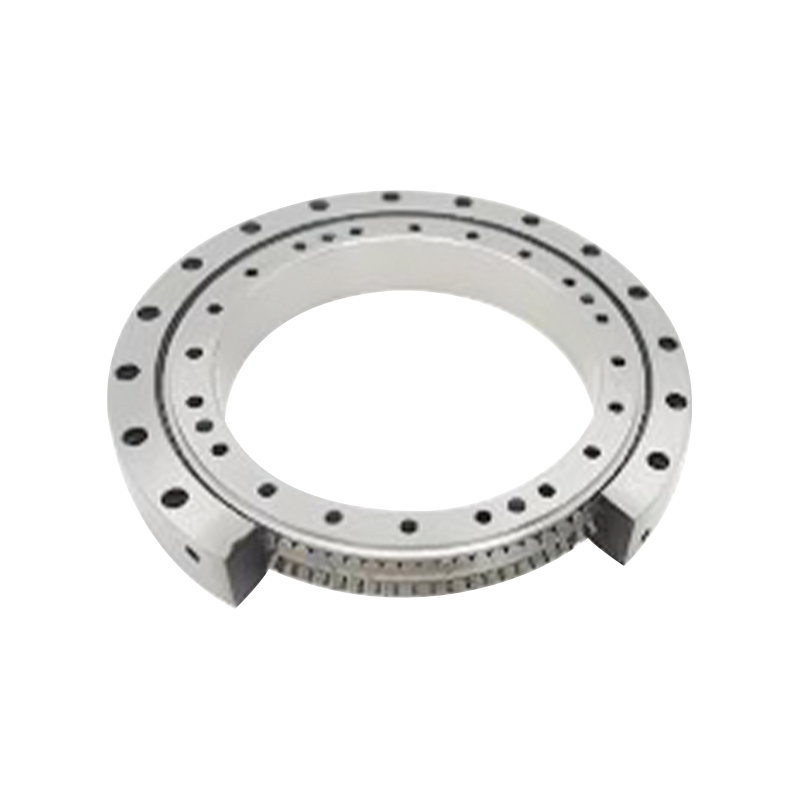

Cross Roller Bearings are specialized rolling-element bearings where cylindrical rollers are arranged orthogonally—positioned at right angles to each other—within V-shaped raceways. This unique “crossed” configuration allows a single bearing to handle radial, axial, and moment loads simultaneously.

Unlike traditional ball bearings, which rely on point contact, the cylindrical rollers in a cross roller bearing provide line contact. This significantly increases the contact surface area, resulting in superior stiffness and minimal elastic deformation under heavy or complex loads.

Key Advantages of Cross Roller Bearings

  • High Rotational Accuracy: The orthogonal arrangement reduces skewing and friction, ensuring exceptionally low runout.
  • Superior Rigidity: Cross roller bearings are 3 to 4 times more rigid than standard angular contact ball bearings.
  • Compact Footprint: Because one cross roller bearing can replace two traditional bearings (like a thrust + radial combination), it allows for significant downsizing of equipment.
  • Simplified Installation: Modern designs, such as those with mounting holes, allow for direct bolting to the housing, reducing assembly complexity.

Comparison: Cross Roller Bearings vs. Traditional Bearings

To help you choose the right solution for your equipment, the following table compares the performance metrics of Cross Roller Bearings against common alternatives.

Feature Cross Roller Bearings Deep Groove Ball Bearings Tapered Roller Bearings
Load Direction Radial + Axial + Moment Primarily Radial Radial + Single-way Axial
Rigidity Ultra-High Moderate High
Space Requirement Minimal (Compact) Moderate Large (often requires pairs)
Precision Grade P2 / P4 / P5 P0 / P6 P5 / P6
Main Application Robotics, CNC Tables Motors, Appliances Automotive, Heavy Industry

Applications in Modern Industry

As a professional bearing factory in China, UKL provides technical support for global industries that require reliable, high-precision movement. Our Cross Roller Bearings are vital components in:

  1. Industrial Robotics: Used in the “waist,” “shoulder,” and “elbow” joints of robotic arms to ensure smooth and accurate positioning.
  2. CNC Rotary Tables: Providing the stability needed for high-speed machining and vertical boring mills.
  3. Medical Equipment: Essential for the high-precision rotation required in CT scanners and MRI machines.
  4. Aerospace & Defense: Supporting radar pedestals and precision satellite tracking systems.

Why Choose UKL Bearing Manufacturing Co., Ltd.?

As an integrated industrial and trading enterprise, UKL Bearing Manufacturing Co., Ltd. (Wuxi) stands out in the competitive landscape through our commitment to precision and flexible service.

1. Integrated Manufacturing Excellence

Unlike many trading firms, UKL operates a fully modernized production base. Our facilities cover the entire manufacturing lifecycle: Forging → Annealing → Turning → Heat Treatment → Grinding → Automated Assembly. This allows us to maintain strict quality control at every stage.

2. High-Precision Standards

Leveraging advanced testing instruments, we produce bearings that reach precision grades of P5, P4, and even P2. Our materials consist of high-purity bearing steel subjected to specialized heat and cold treatment processes to maximize fatigue life.

3. Global OEM/ODM Expertise

With over 15 years of export experience, we understand the nuances of the global market. We offer:

  • Quick Response: Rapid quotes and technical consultations.
  • Customization: Tailored solutions for non-standard requirements based on customer drawings.
  • Proven Reliability: Proudly serving clients across Europe, Asia, Africa, and the Middle East with ISO9001 and ISO14001 certified processes.

4. Technical Support and Service

At UKL, we don’t just sell bearings; we provide solutions. Our team of over 200 skilled professionals offers technical assistance from the initial drawing confirmation to after-sales maintenance, ensuring your machinery operates at peak performance.

Selecting the Right Cross Roller Bearing

When sourcing from a bearing manufacturing company, consider these three critical factors:

  • Inner/Outer Ring Rotation: Determine if the inner ring, outer ring, or both will be rotating, as this dictates the model (e.g., RB, RE, or RU series).
  • Clearance and Preload: High-precision applications typically require a negative clearance (preload) to enhance rigidity.
  • Environment: For clean rooms or corrosive environments, special lubricants or stainless steel materials may be required.

Frequently Asked Questions (FAQ)

1. Which Cross Roller Bearing series should I choose: RB, RU, or CRBH?
It depends on your mounting needs. RB series is ideal for high inner-ring rotation accuracy. RU series features integrated rings with mounting holes for the easiest installation and smallest footprint. CRBH series offers high rigidity for both inner and outer ring rotation. At UKL, we provide technical drawings for all series to ensure the perfect fit for your design.

2. Can one Cross Roller Bearing replace multiple traditional bearings?
Yes. Due to the V-raceway design, a single Cross Roller Bearing handles radial, axial, and moment loads simultaneously. This allows you to replace a dual-bearing setup, reducing space, weight, and assembly costs while maintaining superior rigidity.

3. How does UKL guarantee P4 or P2 precision grades?
We control the entire process in-house at our Wuxi factory—from forging and specialized heat treatment to CNC precision grinding. Every bearing undergoes 100% inspection for noise, vibration, and clearance using advanced testing instruments, ensuring we meet the exceptionally high demands of global industries.

4. Do you offer customization for non-standard applications?
With 15 years of OEM/ODM experience, customization is our strength. Whether you need specific dimensions, stainless steel materials, or specialized lubricants for vacuum or high-temperature environments, UKL provides tailored R&D and manufacturing to meet your exact specifications.

5. What is the typical lead time for international orders?
Standard models are often in stock and ready to ship within 7-10 days. For customized or large-scale production, our integrated supply chain typically delivers within 30-45 days. We prioritize quick response times to support our clients across Europe, Asia, and the Middle East.
