RA Thin Cross Roller Bearing

Ang serye ng RA na thin-profile crossed roller bearings ay nagtatampok ng mas maliit na panlabas na diameter at lapad na sukat, na ginagawang angkop ang mga ito para sa mga application na limitado sa espasyo. Available ang seryeng ito sa mga uri ng cage, separator, at full complement upang umangkop sa iba't ibang pangangailangan.

Contact Us Makipag-ugnayan sa Amin
PREV：RU Series Crossed Roller Bearings SUSUNOD：CRBH Ultra Manipis Precision Bearing
  • Paglalarawan
  • Mga pagtutukoy
  • Makipag-ugnayan sa Amin

Load Capacity:
Pangunahing Dynamic Load Rating (Ca): 234,000 N
Pangunahing Axial Static Load Rating (C0a): 690,000 N
Pangunahing Axial Dynamic Load Rating (Cr): 166,000 N
Pangunahing Radial Static Load Rating (C0r): 340,000 N

Mga Tampok ng Bearing:
1. Napakahusay na Rotational Accuracy: Mataas na bilis ng kakayahan, na makatiis ng malalaking axial at radial load.
2. Madaling Pag-install: Nakakatipid ng espasyo sa pag-install, binabawasan ang haba ng baras at mga gastos sa machining.
3. Mababang Thermal Expansion: Minimal na mga pagbabago sa dimensyon, na angkop para sa mga high-precision na application.
4. Mababang Panimulang Torque: Binabawasan ng mga naylon separator ang rotational inertia at pinapadali ang angular indexing control.
5. Mataas na tigas at katumpakan: Pinahuhusay ng na-optimize na preload ang higpit at katumpakan ng pagpapatakbo ng roller.
6. Wear at corrosion resistance: Binuo gamit ang high-carbon chromium steel (GCr15) at TN engineering plastics, na nagbibigay ng mahusay na impact resistance at surface wear resistance.

Mga Application:
Ang RA series crossed roller bearings ay malawakang ginagamit sa robot hand rotary joints, precision testing instruments, direct-drive torque motors, high-precision turntables, at iba pang application na nangangailangan ng mataas na precision at rigidity.

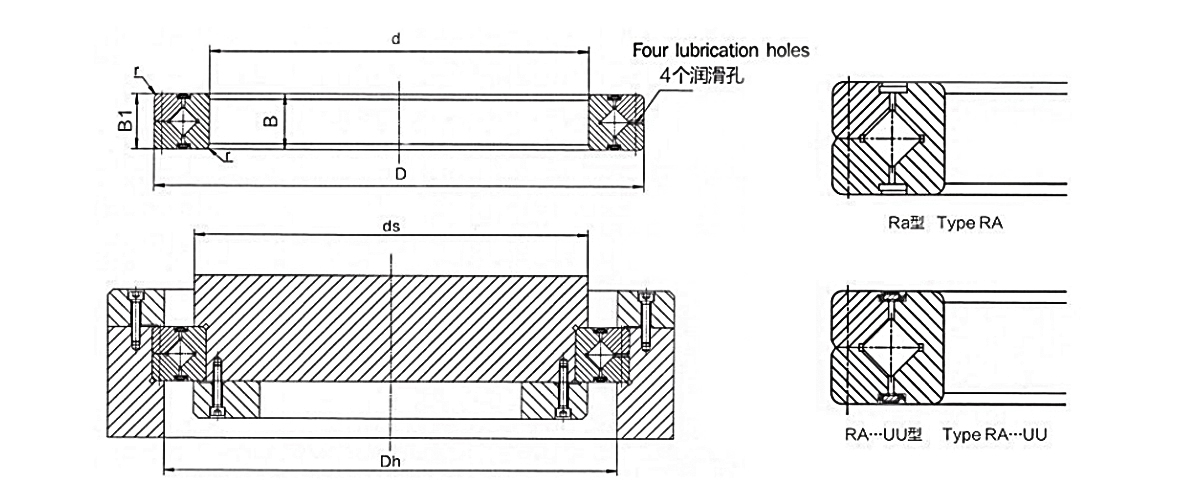

Uri ng Bearing Dimensyon Laki ng Balikat Rating ng Basic Load(radial) Timbang
Inner Diameter Labas Diameter Diameter ng Pitch ng Roller taas Chamfer Cr Cor
d D Dpw B B1 Rmin ds Dh KN KN kg
RA 5008 50 66 57 8 0.5 53.5 60.5 5.1 7.19 0.08
RA6008 60 76 67 8 0.5 63.5 70.5 5.68 8.68 0.09
RA7008 70 86 77 8 0.5 73.5 80.5 5.98 9.8 0.1
RA 8008 80 96 87 8 0.5 83.5 90.5 6.37 11.3 0.11
RA 9008 90 106 97 8 0.5 93.5 100.5 6.76 12.4 0.12
RA10008 100 116 107 8 0.5 103.5 110.5 7.15 13.9 0.14
RA11008 110 126 117 8 0.5 113.5 120.5 7.45 15 0.15
RA 12008 120 136 127 8 0.5 123.5 130.5 7.84 16.5 0.17
RA 13008 130 146 137 8 0.5 133.5 140.5 7.94 17.6 0.18
RA 14008 140 156 147 8 0.5 143.5 150.5 8.33 19.1 0.19
RA 15008 150 166 157 8 0.5 153.5 160.5 8.82 20.6 0.2
RA 16013 160 186 172 13 0.8 165 179 23.3 44.9 0.59
RA 17013 170 196 182 13 0.8 175 189 23.5 46.5 0.64
RA 18013 180 206 192 13 0.8 185 199 24.5 49.8 0.68
RA 19013 190 216 202 13 0.8 195 209 24.9 51.5 0.69
RA 20013 200 226 212 13 0.8 205 219 25.8 54.7 0.71
