Mga Yunit ng Hanger Bearing

Name: Mga Yunit ng Hanger Bearing
Rating: 5 (99 reviews)

Ang Hanger Bearing Units ay isang disenyo ng naka-mount na ball bearing unit, ang UCHA2 ay ang suffix ng ganitong uri ng bearing unit, ang bearing unit ay may UC chrome steel pillow block bearings at HA housing na may cast iron materials. Ang Hanger Bearing Units ay isang disenyo ng naka-mount na ball bearing unit, ang UCHA2 ay ang suffix ng ganitong uri ng bearing unit, ang bearing unit ay may UC chrome steel pillow block bearings at HA housing na may cast iron materials.

Ang bearing UC Series insert bearing ay may parehong panloob na istraktura na may malalim na groove ball bearing, ngunit ang insert bearing ay may spherical outer surface ng outer ring at ang mas malawak na inner ring.

Makipag-ugnayan sa Amin

NAUNA：3 Bolt Flange Mounted Bearing SUSUNOD：Walang susunod na produkto

Mga Detalye
Makipag-ugnayan sa Amin

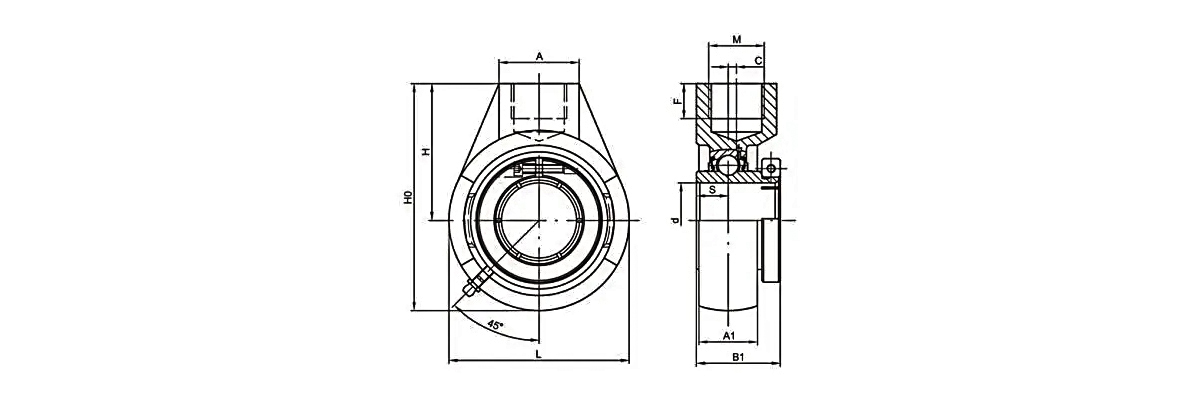

Unit No.	Shaft Dia		Mga Dimensyon(mm)										Timbang (kg)
	d		L	Ho	H	A	M(sa)	F	C	A1	B	S
	(sa)	(mm)	L	Ho	H	A	M(sa)	F	C	A1	B	S
UCHA204		20	64	96	64	40	G3/4	19	0	21	31	12.7	0.7
UCHA204-12	3/4		64	96	64	40	G3/4	19	0	21	31	12.7	0.7
UCHA205		25	78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-14	7/8		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-15	15/16		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-16	1/1		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA206		30	78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-17	1/16		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-18	1/8		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-19	3/16		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-20	1/4		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA207		35	92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-20	1/4		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-21	5/16		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-22	3/8		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-23	7/16		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA208		40	100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA208-24	1/2		100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA208-25	9/16		100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA209		45	108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-26	5/8		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-27	11/16		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-28	3/4		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA210		50	119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA210-30	7/8		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA210-31	1-15/16		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA210-32	1/2		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA211		55	126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-32	1/2		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-34	1/8		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-35	3/16		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA212		60	142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-36	1/4		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-38	3/8		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-39	7/16		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA213		65	166	200	117	70	G1-1/2	32	9.5	44	65.1	25.4
UCHA213-40	1/2		166	200	117	70	G1-1/2	32	9.5	44	65.1	25.4

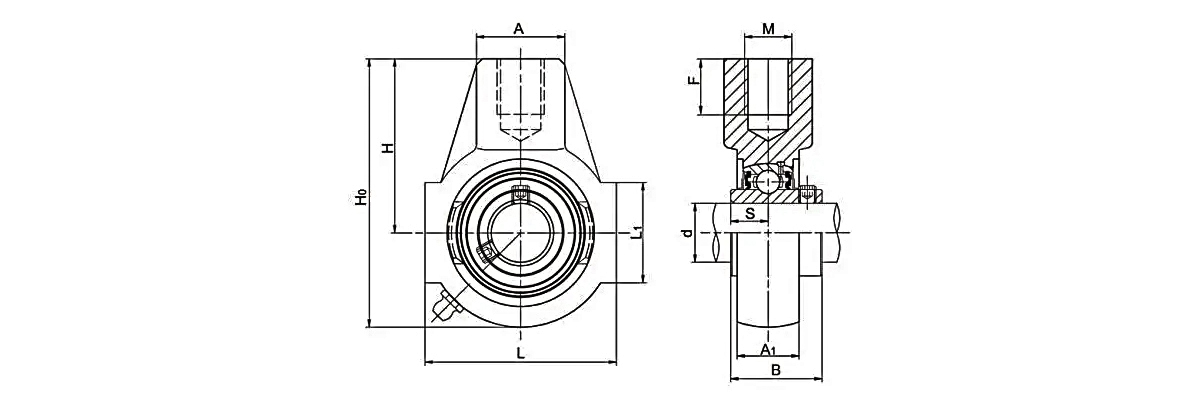

Unit No.	Shaft Dia		Mga Dimensyon(mm)										Timbang (kg)
	d		L	Ho	H	A	M(sa)	F	C	A1	B	S
	(sa)	(mm)	L	Ho	H	A	M(sa)	F	C	A1	B	S
UEHA204		20	64	96	64	40	G3/4	19	0	21	33	12.7	0.77
UEHA204-12	3/4		64	96	64	40	G3/4	19	0	21	33	12.7	0.77
UEHA205		25	78	103	64	40	G3/4	19	0	24	35.4	14.3	0.95
UEHA205-14	7/8		78	103	64	40	G3/4	19	0	24	35.4	14.3	0.95
UEHA205-15	15/16		78	103	64	40	G3/4	19	0	24	35.4	14.3	0.95
UEHA205-16	1/1		78	103	64	40	G3/4	19	0	24	35.4	14.3	0.95
UEHA206		30	78	103	64	40	G3/4	19	0	28	39.8	15.9	1.03
UEHA206-17	1/16		78	103	64	40	G3/4	19	0	28	39.8	15.9	1.03
UEHA206-18	1/8		78	103	64	40	G3/4	19	0	28	39.8	15.9	1.03
UEHA206-19	3/16		78	103	64	40	G3/4	19	0	28	39.8	15.9	1.03
UEHA206-20	1/4		78	103	64	40	G3/4	19	0	28	39.8	15.9	1.03
UEHA207		35	92	116	70	40	G3/4	19	0	30	43.9	17.5	1.38
UEHA207-20	1/4		92	116	70	40	G3/4	19	0	30	43.9	17.5	1.38
UEHA207-21	5/16		92	116	70	40	G3/4	19	0	30	43.9	17.5	1.38
UEHA207-22	3/8		92	116	70	40	G3/4	19	0	30	43.9	17.5	1.38
UEHA207-23	7/16		92	116	70	40	G3/4	19	0	30	43.9	17.5	1.38
UEHA208		40	100	123	73	40	G3/4	19	2	33	50.2	19	1.54
UEHA208-24	1/2		100	123	73	40	G3/4	19	2	33	50.2	19	1.54
UEHA208-25	9/16		100	123	73	40	G3/4	19	2	33	50.2	19	1.54
UEHA209		45	108	136	82	48	G1	21	5	35	50.2	19	2.35
UEHA209-26	5/8		108	136	82	48	G1	21	5	35	50.2	19	2.35
UEHA209-27	11/16		108	136	82	48	G1	21	5	35	50.2	19	2.35
UEHA209-28	3/4		108	136	82	48	G1	21	5	35	50.2	19	2.35
UEHA210		50	119	142	83	48	G1	21	5	37	52.6	19	2.56
UEHA210-30	7/8		119	142	83	48	G1	21	5	37	52.6	19	2.56
UEHA210-31	1-15/16		119	142	83	48	G1	21	5	37	52.6	19	2.56
UEHA210-32	1/2		119	142	83	48	G1	21	5	37	52.6	19	2.56
UEHA211		55	126	150	87	60	G5/4	25	7	38	56.6	22.2	3.12
UEHA211-32	1/2		126	150	87	60	G5/4	25	7	38	56.6	22.2	3.12
UEHA211-34	1/8		126	150	87	60	G5/4	25	7	38	56.6	22.2	3.12
UEHA211-35	3/16		126	150	87	60	G5/4	25	7	38	56.6	22.2	3.12
UEHA212		60	142	173	102	60	G5/4	28	9	42	66.6	25.4	4.47
UEHA212-36	1/4		142	173	102	60	G5/4	28	9	42	66.6	25.4	4.47
UEHA212-38	3/8		142	173	102	60	G5/4	28	9	42	66.6	25.4	4.47
UEHA212-39	7/16		142	173	102	60	G5/4	28	9	42	66.6	25.4	4.47

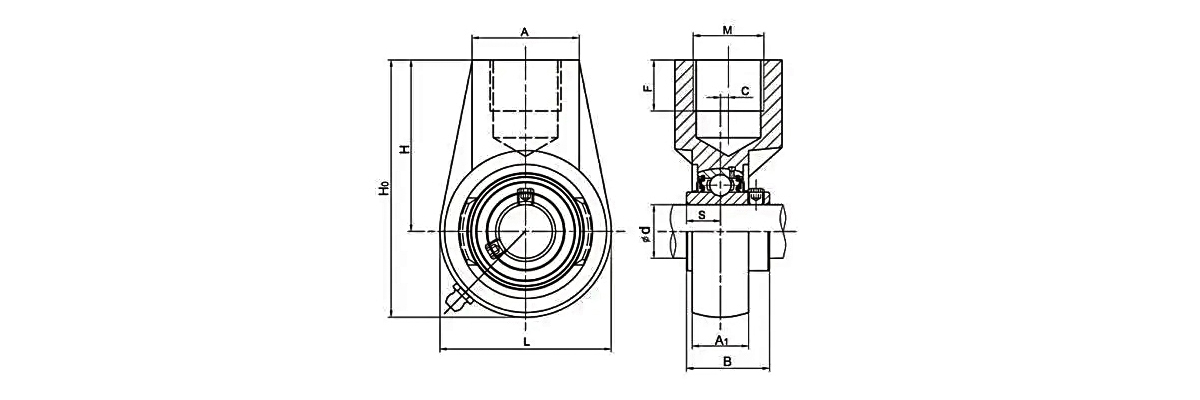

Unit No.	Shaft Dia		Mga Dimensyon(mm)										Timbang
	d		L	Ho	H	A	M	F	L1	A1	B	S	(kg)
	(sa)	(mm)	L	Ho	H	A	M	F	L1	A1	B	S	(kg)
UCHE201		12	65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE201-8	1/2		65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE202		15	65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE202-9	9/16		65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE202-10	5/8		65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE203		17	65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE203-11	11/16		65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE204		20	65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE204-12	3/4		65	91	58	30	M16	21	38	24	31	12.7	0.61
UCHE205		25	70	99	64	35	M20	22	38	24	34.1	14.3	0.79
UCHE205-14	7/8		70	99	64	35	M20	22	38	24	34.1	14.3	0.79
UCHE205-15	15/16		70	99	64	35	M20	22	38	24	34.1	14.3	0.79
UCHE205-16	1/1		70	99	64	35	M20	22	38	24	34.1	14.3	0.79
UCHE206		30	85	114	72	40	M24	24	40	32	38.1	15.9	1.23
UCHE206-17	11/16		85	114	72	40	M24	24	40	32	38.1	15.9	1.23
UCHE206-18	1/8		85	114	72	40	M24	24	40	32	38.1	15.9	1.23
UCHE206-19	3/16		85	114	72	40	M24	24	40	32	38.1	15.9	1.23
UCHE206-20	1/4		85	114	72	40	M24	24	40	32	38.1	15.9	1.23
UCHE207		35	90	122	76	40	M24	24	48	30	42.9	17.5	1.44
UCHE207-20	1/4		90	122	76	40	M24	24	48	30	42.9	17.5	1.44
UCHE207-21	5/16		90	122	76	40	M24	24	48	30	42.9	17.5	1.44
UCHE207-22	3/8		90	122	76	40	M24	24	48	30	42.9	17.5	1.44
UCHE207-23	7/16		90	122	76	40	M24	24	48	30	42.9	17.5	1.44
UCHE208		40	101	135	85	40	M24	24	45	33	49.2	19	1.82
UCHE208-24	1/2		101	135	85	40	M24	24	45	33	49.2	19	1.82
UCHE208-25	9/16		101	135	85	40	M24	24	45	33	49.2	19	1.82
UCHE209		45	110	145	90	40	M24	24	46	40	49.2	19	2.05
UCHE209-26	5/8		110	145	90	40	M24	24	46	40	49.2	19	2.05
UCHE209-27	11/16		110	145	90	40	M24	24	46	40	49.2	19	2.05
UCHE209-28	3/4		110	145	90	40	M24	24	46	40	49.2	19	2.05
UCHE210		50	110	145	90	40	M24	24	46	40	51.6	19	2.13
UCHE210-30	7/8		110	145	90	40	M24	24	46	40	51.6	19	2.13
UCHE210-31	1-15/16		110	145	90	40	M24	24	46	40	51.6	19	2.13
UCHE210-32	1/2		110	145	90	40	M24	24	46	40	51.6	19	2.13
