SAZP Rod End Joint Bearing

Ang rod end bearing body ay gawa sa carbon steel na may galvanized surface, at ang sliding surface ay nilagyan ng bronze gaskets. Ang inner ring ay gawa sa bearing steel, hardened, at spherically hard chrome plated. Maliban sa mga bore diameter na mas mababa sa 6.35 mm, lahat ng iba ay maaaring lubricated ng isang oil cup.

Contact Us Makipag-ugnayan sa Amin
PREV：SIZP Zinc Coated Precision Rod End Bearing SUSUNOD：SI Walang Pagpapanatili na Rod End Bearing
  • Paglalarawan
  • Mga pagtutukoy
  • Makipag-ugnayan sa Amin

· Numero ng Produkto: SAZP…S 4.83～25.4
·Pares ng Sliding Friction: Bakal/Tanso
· Saklaw ng Temperatura sa Pagpapatakbo: 50℃～＋150℃

Ang mga rod end bearings na may iba't ibang mga kinakailangan sa katumpakan ng thread ay magagamit.
Para sa mga thread sa kaliwang kamay, ang modelo ng bearing at pagmamarka ng thread ay dapat na sundan ng "L" at "LH", halimbawa: SALZP12S 1/2 20UNF 2ALH.
Ang rod end body at inner ring ng mga produkto sa itaas ay maaaring gawa sa hindi kinakalawang na asero. Ang modelo ng bearing ay mamarkahan ng "X", ibig sabihin, SAZP...S/X.

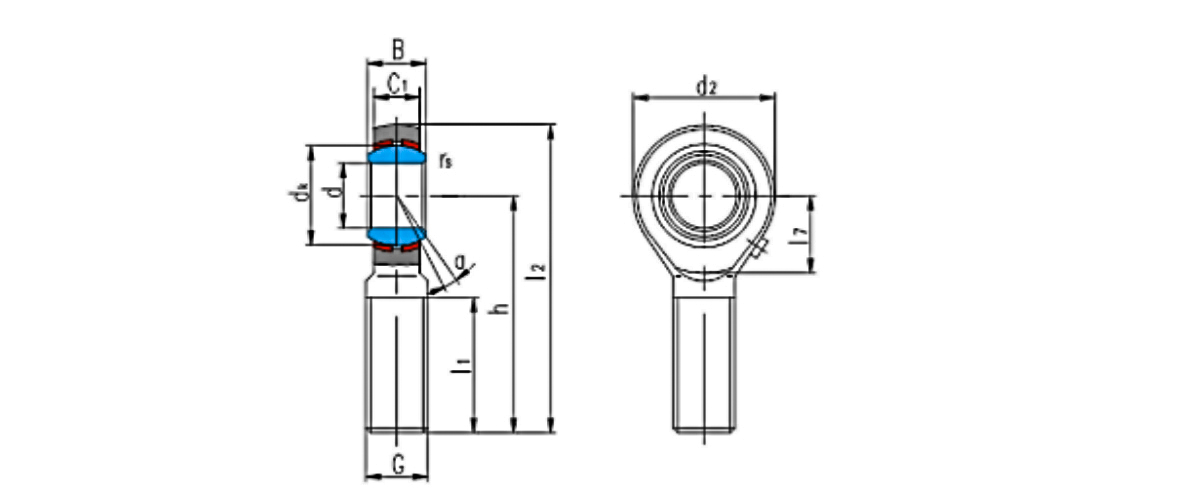

tindig
numero 		Mga sukat
mm/pulgada 		Mag-load ng mga rating
kN 		Timbang
≈kg
d B dₖ C₁
max 		d₂ G
UNF-2A 		h I₁
min 		I₂ ako₇ rₛ
min 		α°
≈ 		Dynamic Static
SAZP4S 1) 4.83 7.92 11.1 6.35 15.88 10-32 31.75 19.05 39.70 - 0.3 10 3.4 3.8 0.013
0.19 0.312 0.437 0.25 0.625 1.25 0.75 1.563 0.012
SAZP8S  1) 6.35 9.53 12.7 7.14 19.05 1/4-28 39.87 25.40 49.20 - 0.3 13 4.5 6.6 0.022
0.25 0.375 0.5 0.281 0.75 1.582 1 1.937 0.012
SAZP7S 7.94 11.10 15.88 8.74 22.23 5/16-24 47.83 31.75 58.72 - 0.3 10 6.9 8.4 0.037
0.3125 0.437 0.625 0.344 0.875 1.875 1.25 2.312 0.012
SAZP9S 9.53 12.70 18.26 10.31 25.40 3/8-24 49.23 31.75 61.93 - 0.6 9 9.4 10 0.055
0.375 0.5 0.719 0.406 1 1.938 1.25 2.438 0.024
SAZP11S 11.11 14.27 20.62 11.1 28.58 7/16-20 53.98 34.93 68.28 - 0.6 11 11 13 0.078
0.4375 0.562 0.812 0.437 1.125 2.125 1.375 2.688 0.024
SAZP12S 12.7 15.88 23.81 12.7 33.32 1/2-20 61.93 38.10 78.59 - 0.6 9 15 19 0.12
0.5 0.625 0.937 0.5 1.312 2.438 1.5 3.094 0.024
SAZP15S 15.88 19.05 28.58 14.27 38.10 5/8-18 66.68 41.28 85.73 18.2 0.6 11 20 21 0.18
0.625 0.75 1.125 0.562 1.5 2.625 1.625 3.375 0.717 0.024
SAZP19S 19.05 22.23 33.32 17.45 44.45 3/4-16 73.03 44.45 95.25 20.9 0.6 10 29 29 0.29
0.75 0.875 1.312 0.687 1.75 2.875 1.75 3.75 0.823 0.024
SAZP25S 25.40 34.93 47.63 25.40 89.85 5/4-12 104.78 53.98 139.70 33.9 0.6 14 60 101 1.1
1 1.375 1.875 1 2.75 4.125 2.125 5.5 1.335 0.024
