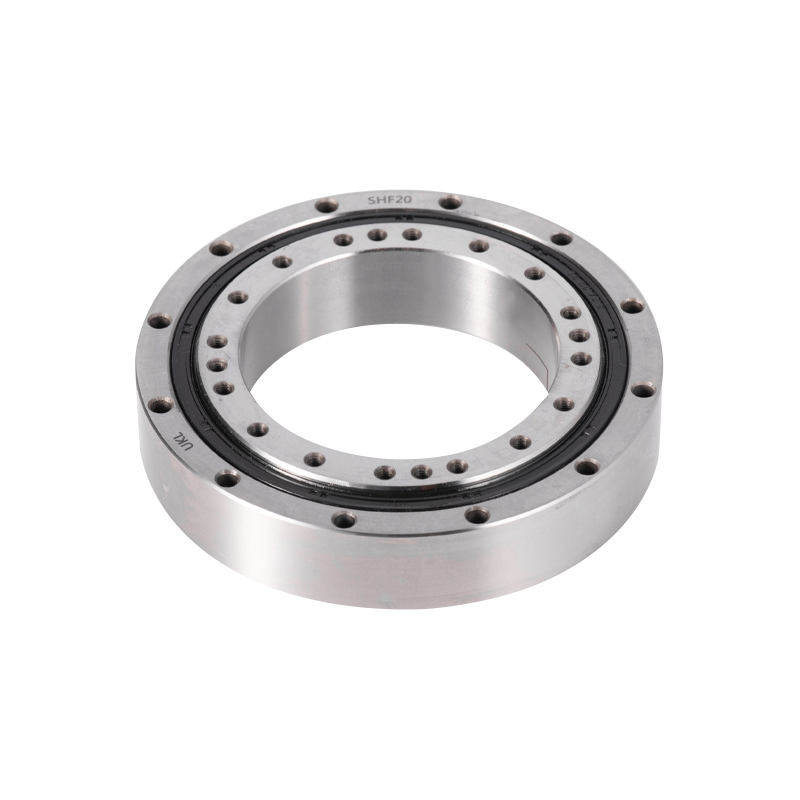

SHF(G) Series Integrated High Rigidity Harmonic Drive Bearing

Parehong ang panloob at panlabas na mga singsing ay mahalagang istruktura, at ang pag-install ay halos walang epekto sa pagganap, na tinitiyak ang matatag na katumpakan ng pag-ikot at torque. Ang mga ito ay napakadaling gamitin at angkop para sa iba't ibang SHF harmonic reducer series.

Contact Us Makipag-ugnayan sa Amin
PREV：CSF G High Rigidity Reducer Bearing SUSUNOD：XSU Crossed Roller Bearings
  • Paglalarawan
  • Mga pagtutukoy
  • Makipag-ugnayan sa Amin

Mga Tampok ng Produkto
Nako-customize na high-precision, high-load-capacity rigid support bearings.

Mga Bentahe ng SHF(G):
Nailalarawan sa pamamagitan ng mataas na kapasidad ng torque, mataas na tigas, mataas na katumpakan ng pagpoposisyon, mataas na katumpakan ng pag-ikot, mataas na kahusayan, mataas na katatagan, napakaliit na sukat, at napakagaan na timbang.

Malawak na Aplikasyon
Industrial automation at robotic arm joints, humanoid robot, semiconductor LCD production equipment, photovoltaic equipment, optical instruments, precision machine tools, at iba't ibang field.

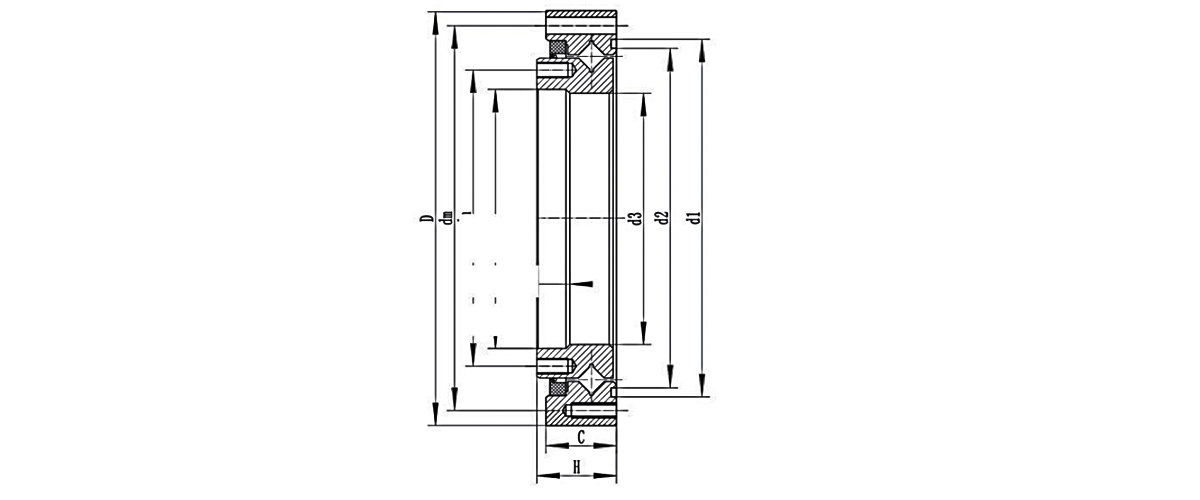

Uri ng Bearing Pangkalahatang Dimensyon(mm) Sukat ng Butas ng Pag-install(PCD&SPEC) Pangunahing Rating ng Pag-load Timbang
Cr Cor
D d d3 B C H dm dn KN KN kg
SHF-14 70 38 35.6 13.7 14.1 15.1 64 8-φ3.5 44 12-M3 5.9 6.8 0.25
SHF-17 80 47 44.2 16.4 16 17 74 12-φ3.4 54 20-M3 9.8 13.5 0.37
SHF-20 90 54 51.3 17.5 17.5 18.5 84 12-φ3.5 62 16-M3 18.5 25.6 0.48
SHF-25 110 67 64.2 19.7 18.7 20.7 102 12-φ4.5 77 16-M4 20.6 28.9 0.76
SHF-32 142 88 84 23.4 23.4 24.4 132 12-φ5.5 100 16-M5 29.8 46.3 1.65
SHF-40 170 108 106 28.5 29 30 158 12-φ6.5 122 16-M6 45.6 70.5 2.68
SHF-50 214 135 129 34.5 34 36 200 12-φ9 154 16-M8 75.2 147.8 5.11
